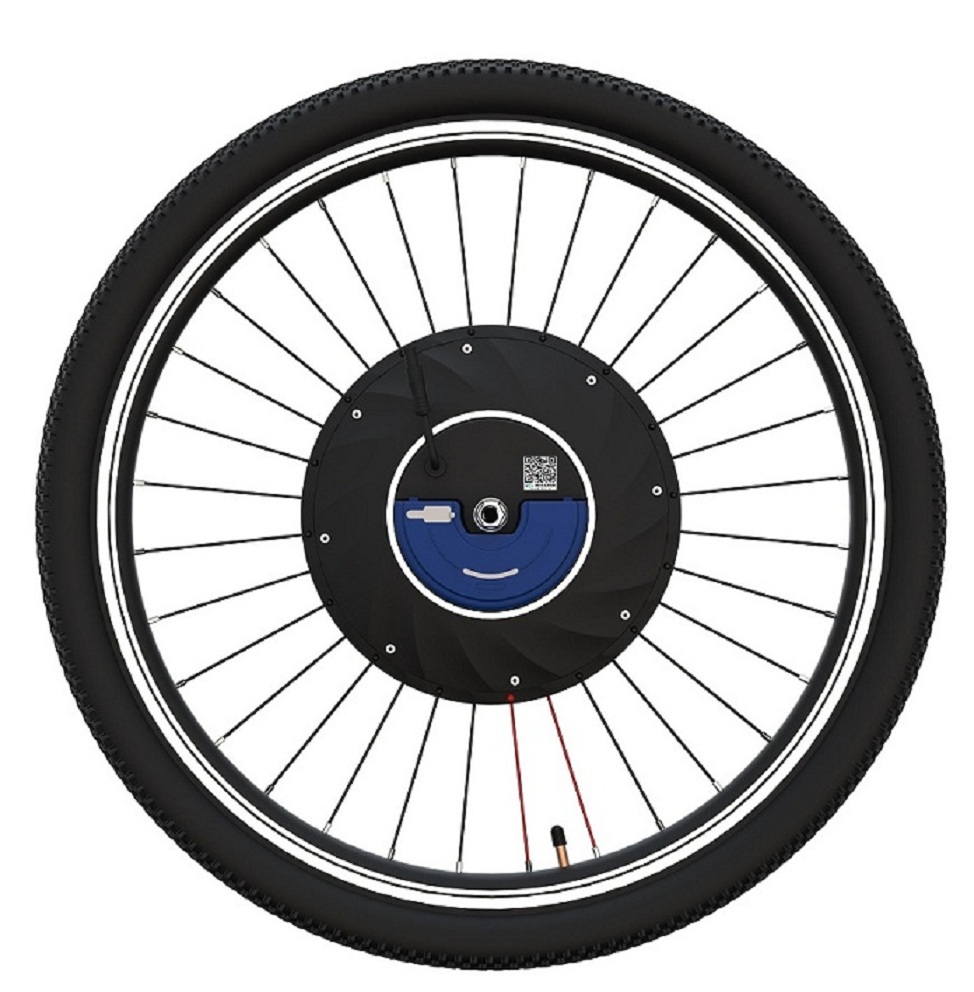

- 350w Motor, controller,6.4Ah LG lithium battery (Expand battery) all in one ebike conversion kit. Change one bike to electric bike in mins.
- E-brakes shuts off motor automatically, saves energy, improves safety. LCD display or Bluetooth APP to show all the details.
- Removable battery, take home to charge or as a big power bank to charge your phone.
-
FREE TAX TO UK, MALAYSIA, AND EU COUNTRIES( Germany, France, Belgium, Luxembourg, Netherlands,Denmark, Italy, Czech Republic, Poland,Austria, Spain, Ireland, Portugal, Sweden). OTHERS COUNTRIES WILL NEED TO PAY THE TAX BY CUSTOMERS.
iMortor2 Specifications
Brand | iMortor2.0 | |
Model | Front Wheel of Electric Bicycle | |
Type | All in one conversion kit | |
Wheel Weight(with Battery) | About 10kg | |
Thumb Shifter | Five-star Acceleration Dial | |
Operation Mode |
Option 1. LCD display |
|
Speed Setting |
|
|
Motor | 350W 24V | |
Battery | 24V6400mah LG lithium battery | |
Max Speed | 40km/h by PAS 24V | |
Range | 57km-60km by PAS | |

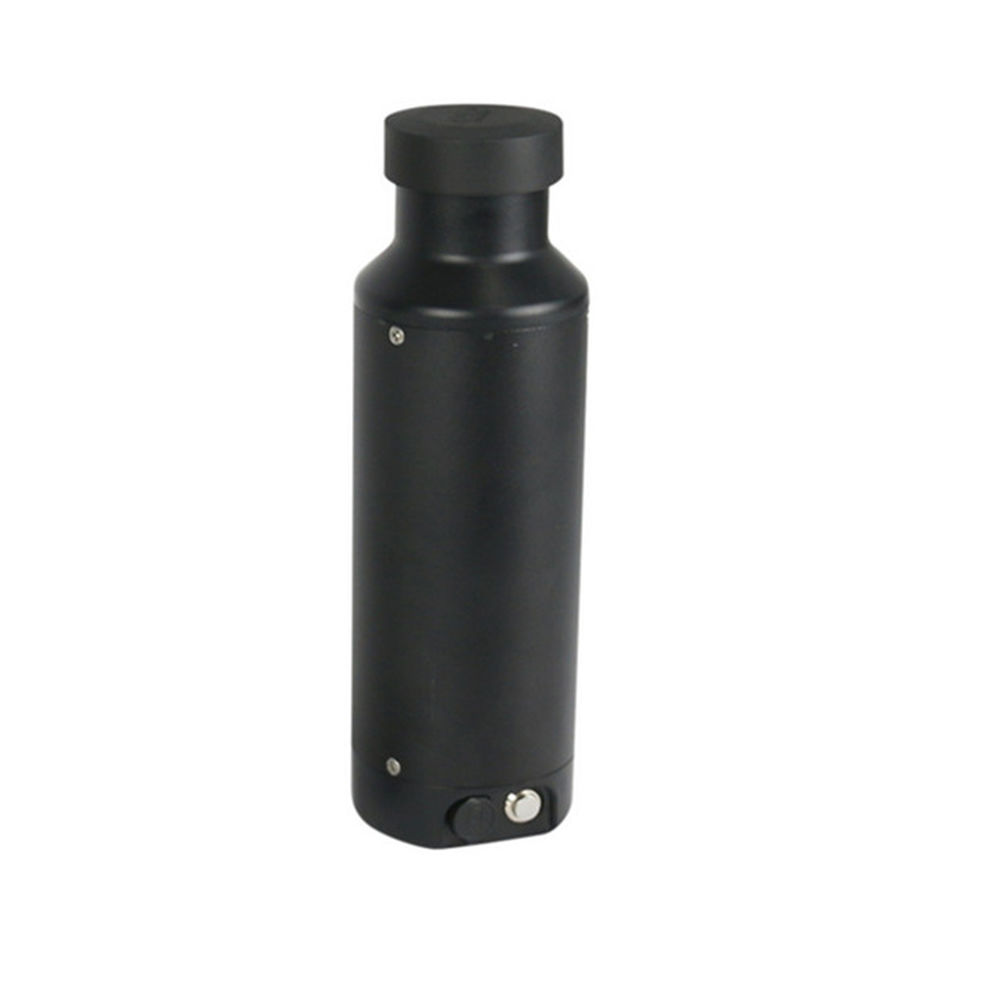

Expand Function | Additional bottle battery is available | |
Maximum Weight Limit of Drivers | 180Kg | |
User manual | Download iMortor 2.0 user manual. |
Please pay attentionFor a better riding experience and durable using, the outward for 20-inch and 24-inch rim is as below. The other specifications- 24V 350W motor, 6.4Ah battery etc. are as same as description. |
![]() |

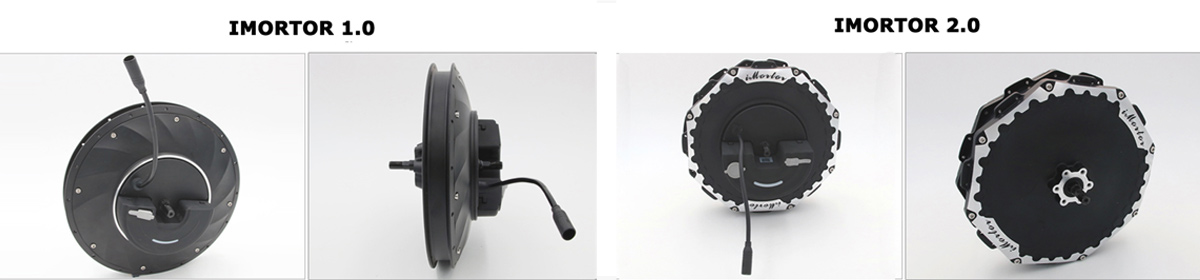

iMortor 1.0 VS iMortor 2.0
|
|||||
iMortor 1.0 | iMortor 2.0 | iMortor 1.0 | iMortor 2.0 | ||
Pure Power Speed | 27 | 35 | Battery Capacity/ Wh | 118(10S1P) | 165(7S2P) |
Assisted Speed/ km/h | 32 | 40 | Acceleration Time/s | 31 | 25 |
Battery Quantity/piece | 10 | 14 | Rated Torque/N.m | 5.5 | 7 |
Battery Expansion Function | / | Yes(Add Bottle Battery) | Input Power/W | 36v*9A=324W | 24V*18A=432W |
Pure Electric Travelling Distance | 20 | 25 | Expression Power/W | 240 | 350 |
Assisted Travelling Distance | 35 | 50 | Battery Weight/kg | 0.725 | 0.925 |
Choose a expand battery?
About the iMortor Conversion Kit Shipment:1.Default——Special airline(shipping time is about 15 days) You will receive two packages. One for the wheel and another one for the battery. 2. Optional——By train(shipping time is 40-60 days), Please contact us to get the shipping coupon if you want to ship the package by train. |
Questions about iMortor electric bike conversion kit |
1. Does the iMortor wheel fit my bike?

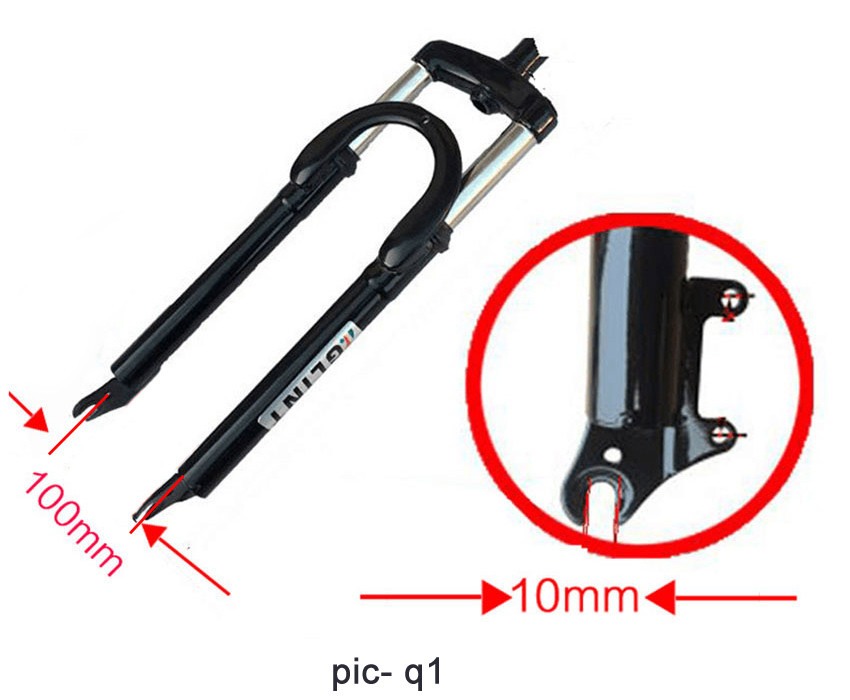

Re: The iMortor front ebike conversion kit available for various kinds of city bikes, mountain bike, road bike which with front fork dropouts of 100mm/10mm, tire size 20", 24", 26", 27.5", 28", 700C. See the pic-q1.
2. How to choose the right wheel and tire(tyre) size?

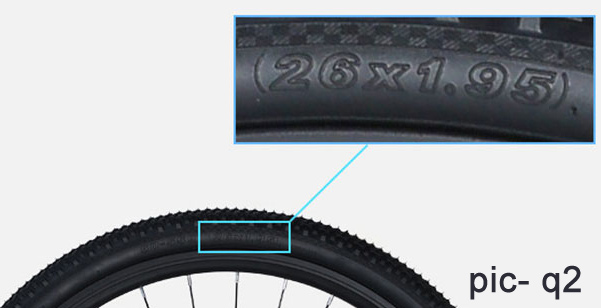

Re: To make sure you order the right size of tire, you can see the marks your bike tire, as picture pic-q2.
( Please send a note about your tire width when you placing the order. )
3. Does the iMortor include the PAS, should I order an extra PAS?
Re: Yes, the iMortor has included a PAS, you don't need to order one more.
But please make sure your crank can install the PAS. ( If it is too narrow between the crank arm and bottom bracket, the PAS would fail to install). See the pic-q3.
4. What is the best electric bike kit on your store? What is the advantage of iMortor2?
Re: We offer different kinds of electric bike kits, front motor ebike kit, rear motor ebike kit, mid motor ebike kit to satisfy bikers with different requirement.

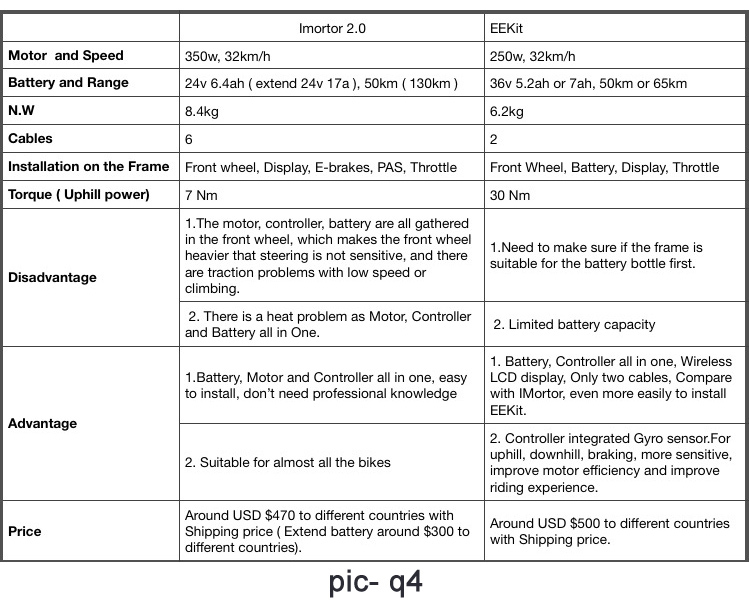

Now the imortor 2.0 wheel kit and the EEKit are the most popular. The difference please see the picture pic-q4.
Motor | 350W24V |
---|---|
Battery capacity | N/A |
Battery Brand | LG |
Charging time | 2h |
Throttle | N/A |
