Imortor 1.0 All in One Front Wheel Ebike Conversion Kit

Imortor V01
98% of 100
In stock

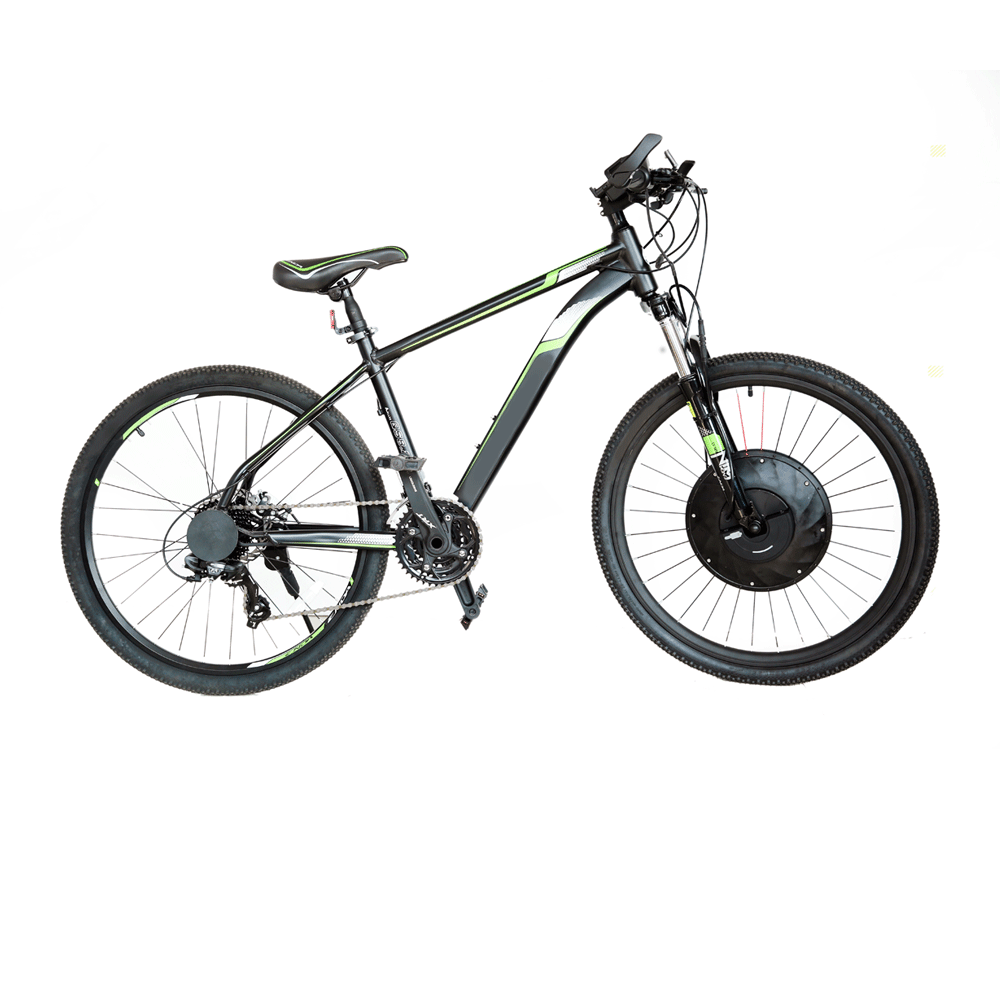

  • iMortor1 is a front wheel electric bike conversion kit with battery, convert a bike to an electric bike fast and easily.
  • E-brakes shuts off motor automatically, saves energy, improves safety.
  • Detachable Pedal Assistant System (PAS 12 Magnetic core).
  • LCD display or Bluetooth APP to show all the details.
  • Removable battery, take home to charge or as a big power bank to charge your phone.

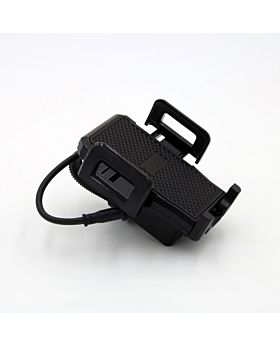

  • Phone holder with USB, ride your new e-bike at the same time to charge your phone.

imortor conversion kit


Name iMortor1.0
Model  Front wheel electric bike conversion kit with battery
Type All in one conversion kit
Wheel Weight(with Battery) About 10kg
Thumb Shifter Five-star Acceleration Dial

Optional 1.Bluetooth 4.0 (Support Android and IOS systems)

Optional 2. LCD display

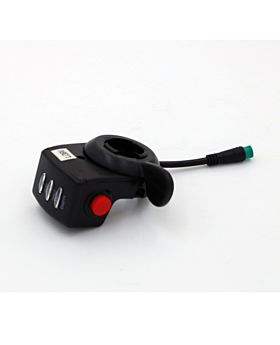

24351465Imortor lcd display thumb throttle


1.the front fork gap is 100mm, front fork slot 10mm, with quick released axle not  thru axle.


2. Make sure your crank can install the PAS.

imortor pas

Speed Setting
  • The driving speed of iMortor at leisure gears, movement gears, and top speed gears is respectively, 16km/h, 20km/h, and 26Km/h.
  • Don't suggest the overspeeding operation when the iMortor is driven.
  • Please carefully read the User Manual before installation, and pay attention to relevant safety matters.
Motor 240W 36V
Battery 36V3200mah LG lithium battery
Max Speed 32km/h by PAS 24V
Range 35km-40km by PAS
Color Black
Maximum Weight Limit of Drivers 180Kg
User manual Download iMortor 1.0 user manual.

More popular electric bike conversion kits

bafang bbs mid drive motor kitone calbe electric bike conversion kitrear electric bike kit

Q: How to choose the right wheel and tire/ tire size?

A: To make sure you order the right size of tire, you can see the marks your bike tire, as pictured below.



How to choose the Wheel and Tire/tyre size if it is 28" or 29".

Re: Most 28" tires are seen on the city bikes or commuter bicycles. For bigger tire size such as 28"*1.95" or 28" * 2.1" please confirm with us for the delivery time before placing the order.

See from the picture below, most of the 28" or 29" tire will have the same rim-622mm as the 700C.



More Information
Motor 36V240W
Battery capacity 124wh
Battery Brand Panasonic
Charging time 2h
Throttle Thumb throttle

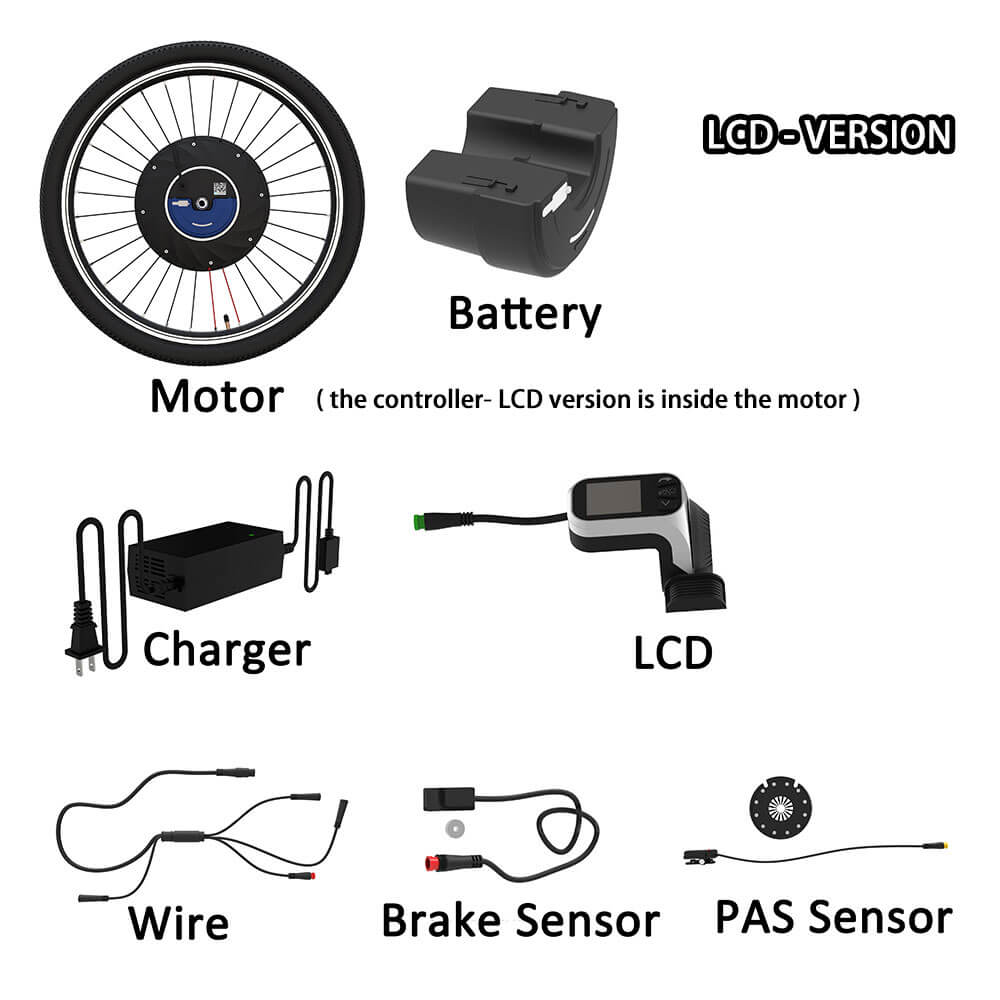

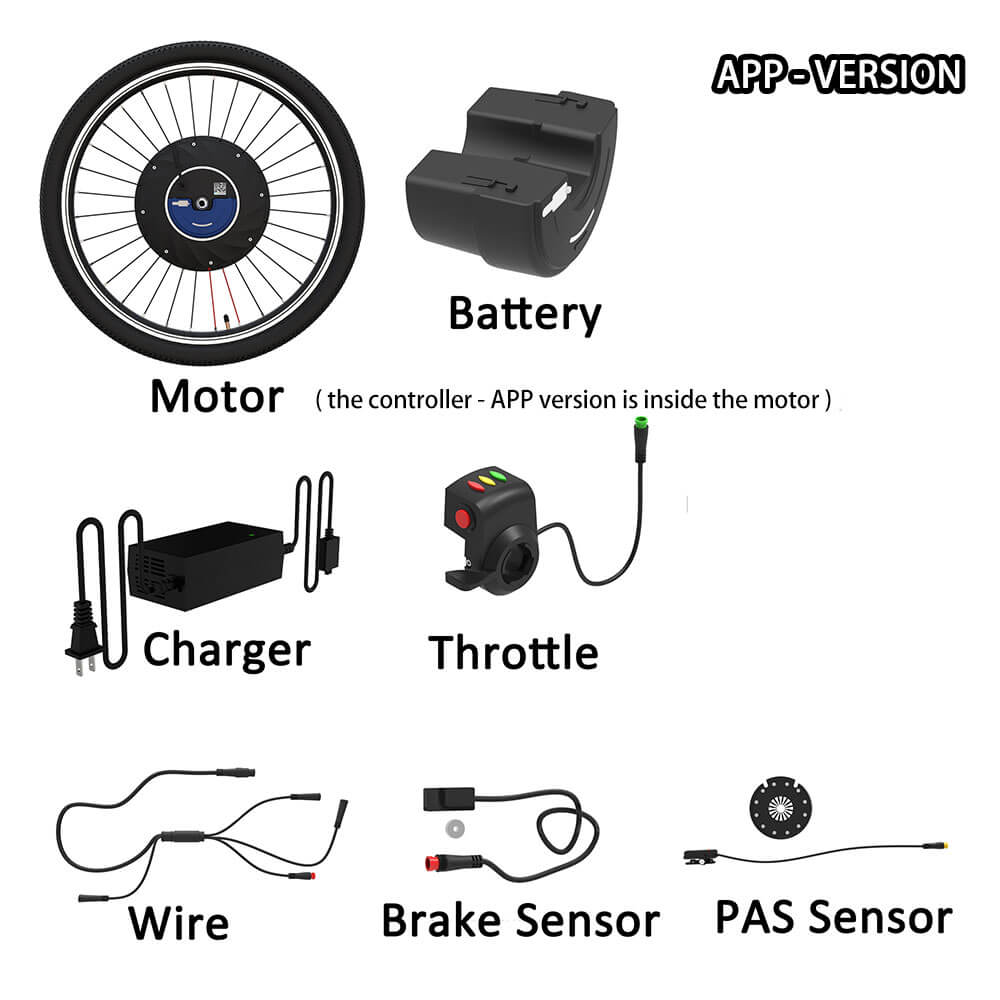

imortor1 front wheel electric bike kit packageimortor1 front wheel electric bike kit package

No. Parts Quantity
1 Front motor wheel 1pc
2 Battery  optional

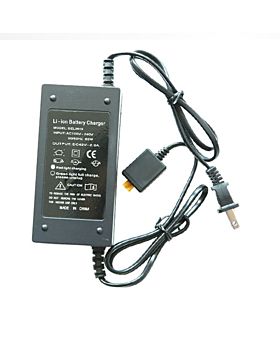

3 Charger ( EU/US/AU charger) 1pc
4 iMortor Booster( PAS) 1pc
5 LCD display (or throttle+ APP+ Phone holder)  1pc
6 Brake breaker (Brake sensor) 1pc
7 4-in-1 cable 1pc
8 Tools and washers 1 set

About shipment ( Important! )

Please read the following terms before placing an order.

The time showed in the " Shipping Method" means the transport time, not including the handling time which takes 1-7 days usually.

All the packages are shipped without the tarriff or VAT ( except the batteris or electric bike conversion kits)

1. Battery/ Products with battery

Handling time: 3-7 days
Thanks for purchasing our product.
The battery is a special product which needs several cycle tests before delivery, so production and test time need about 3-7 days.

Due to the express shipping regulation of express company for the risky item like the battery, we ship the battery separately from other goods and via special air method to the destination country, then to your door via UPS, FedEx, or some other express company.

Noted! Handling time of E-bike or electric bike kits please check on their product page.


Shipping time

Customs Tax

European Union

( not include the Colony or dependency islands)

18-35 days ( the UPS or DPD or other Logistics companies could pick it up after completing the customs clearance,  it may take 10-25 days before picking up)


(Delivered Duty Paid for the following countries:

Germany, France, Belgium, Luxembourg, Netherlands,
Denmark, Italy, Czech Republic, Poland,
Austria, Spain, Ireland, Portugal, Sweden)

DDU ( Other countries in European)


 18-35 days

DDP(Delivered Duty Paid)


18-35 days

DDP(Delivered Duty Paid)


 18-35 days 18-35 days ( the UPS or FedEx or other Logistics companies could pick it up after completing the customs clearance,  it may take 10-25 days before picking up)


Service area not included

PO BOX; affiliated islands, remote areas: 006-009;  PUERTO RICO AND VIRGIN ISLANDS; 966-969 HAWAII AND GUAM;995-999 ALASKA,  etc. Customers from these areas please contact us to confirm the cost.


18-35 days

DDU(Delivered Duty unPaid)

Service area not included:

P.O.BOX, military address, Northwest, Territories, Nunavut, Yukon, customers from these areas please contact us first to confirm the cost.

South Africa

18-35 days

DDP(Delivered Duty Paid)

Australia, New Zealand

18-35 days

DDU(Delivered Duty Unpaid)
NO tax declare value;AU < AUD1000; NZ<USD300

Malaysia, Thailand

15-30 days

DDU(Delivered Duty Unpaid)


15-30 days

DDU(Delivered Duty Unpaid)


15-30 days

DDU(Delivered Duty Unpaid)


 15-30 days

 DDP(Delivered Duty Paid)

Service area not included
Hokkaido; Okinawa; Fukushima, Radiation Control Area.

We only ship battery/ products with battery to the above countries at present. But we will try our best to add channels to more countries in the future.




2. Other products

Handling time

3-7 days

You can choose the shipping way when you checkout and see the shipping items.

 Please note: VAT, tarriff or taxes or duty or charges are not included in the item price or postage cost. These charges are the buyer's responsibility.

Usually, we will declare a reasonable minimum value to save your customs tax. But due to the different policies in different countries, the customs may ask you to pay the tax.

Ship via ChinaPost

10-30 days

Express company

5-10 days


We understand the importance of the right product and the right fit, we sincerely want you to love your items. To make a return, please follow these guidelines:


Defective item

If an item is defective when you receive it, it will need to be returned to us for a full inspection to ensure it is covered by the warranty. To return a faulty item please follow the procedure below:

To qualify for a return:

Returns will be accepted within 15 days after you receive the product.

The item(s) must be in new with original packaging.

The damaged item even following the regular operation.

Proof of defective item required.


Items not acceptable by return:

The item was not purchased from ELECYCLES.

The item is unclean.

The item was damaged by improper use or damaged in an accident.


Once the product has been returned to us and has been ascertained as complete and undamaged (including the “original sealed” product box including its original packing materials) your purchase price, and original shipping will be refunded to you. We do not refund any applicable tax. Note that if the product is defective through no fault of your own, you may either request a repair or an exchange.


All returns:

Refunds, including original shipping, will be refunded to the credit card account/ corresponding account used for purchase within 30 days after the return is received. A refund will be applied to the original card used in the transaction.

If an item is returned that does not meet the above criteria, the return will be declined and the item returned to you.


Please noted

1. For the electric bikes or ebike kits or the electric wheelchair or the electric handcycle, shipping fees to return the items are at the customer's own expense.

2. Please consult your local post office to confirm the actual return shipping fee. We advise you use the cheapest registered airmail method that is available.


Wrong item

If we have accidentally sent you the wrong item, you do as below.

A. If the wrong item is acceptable, you could ask for a special offer for this item, the difference would be refunded to your account.

B. You could request the return. The purchase price and original shipping will be refunded.

C. Please contact us if you have any other query or request.


Unwanted item / no faulty

If you have changed your mind on your purchase, please contact us.


If you have any questions regarding your purchase or its warranty, please chat with us one line or email to [email protected].
