BAFANG BBS01B BBS02B BBSHD 250W-1000W E-bike Conversion Kit

SKU
Bafang BBS
Rating:
97% of 100
In stock
$357.00
-
+
Overview
  • We also have batteries for this kit which can be only shipped to European Union, UK, Russian, American, South Africa, Australia, New Zealand, Malaysia, Thailand, Singapore, Korea.
  • Delivery in 3-5 working days.
  • BAFANG high-performance mid drive motor conversion kit.
  • Best and most famous brand motor kits in China.
  • Suitable for bikes with 68mm or 73mm Bottom bracket.
  •  Free Duty to EU, UK, USA, AU.

Before you order this BAFANG BBS mid motor kits, please read the Bafang BBS installation manual first.

This Bafang mid-motor conversion kit is for knowledgeable builders and people who willing to do DIY their e-bike. It is a plug-and-play kit with everything you need except the battery and charger.

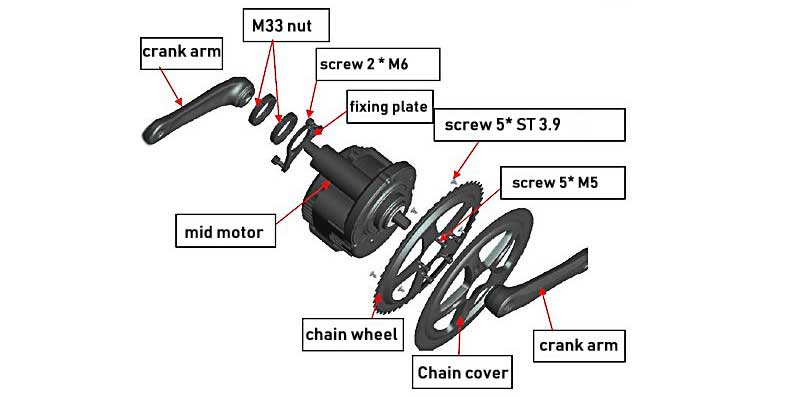

Bafang BBS02 mid motor structure

bafang BBS mid motor structure

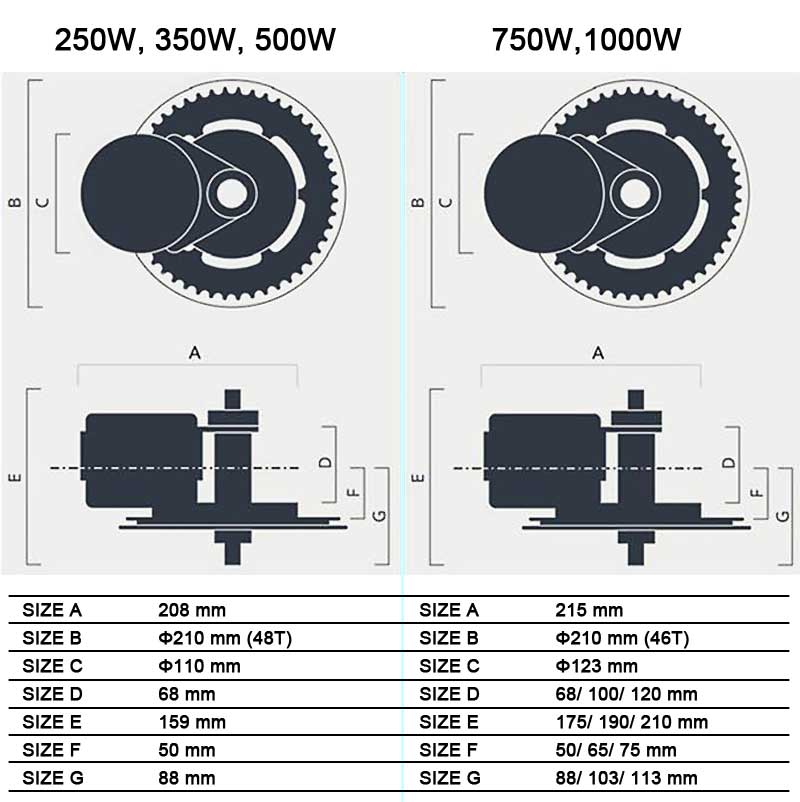

Bafang BBS mid motor size

bafang bbs mid drive motor size

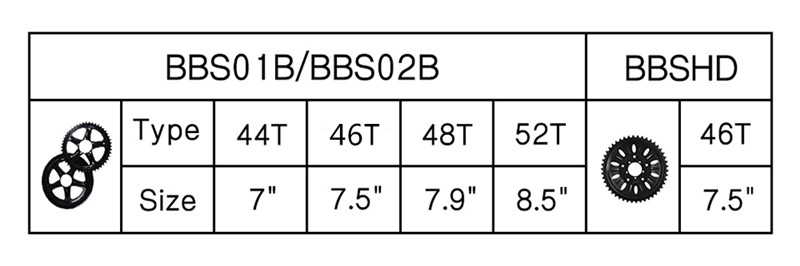

bafang bbs crankset

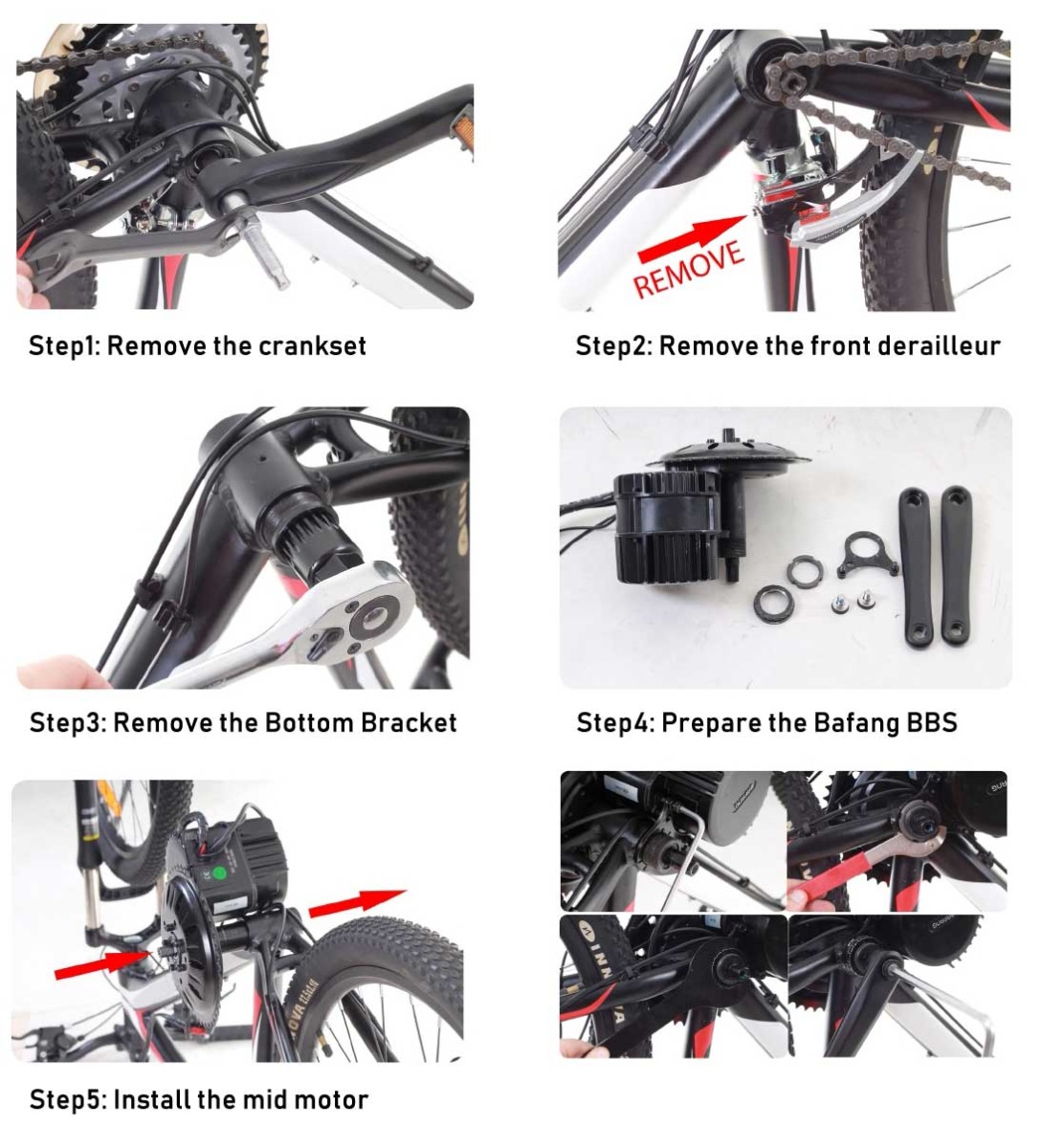

Bafang BBS mid motor installation

how to install the bafang BBS02 mid drive motor

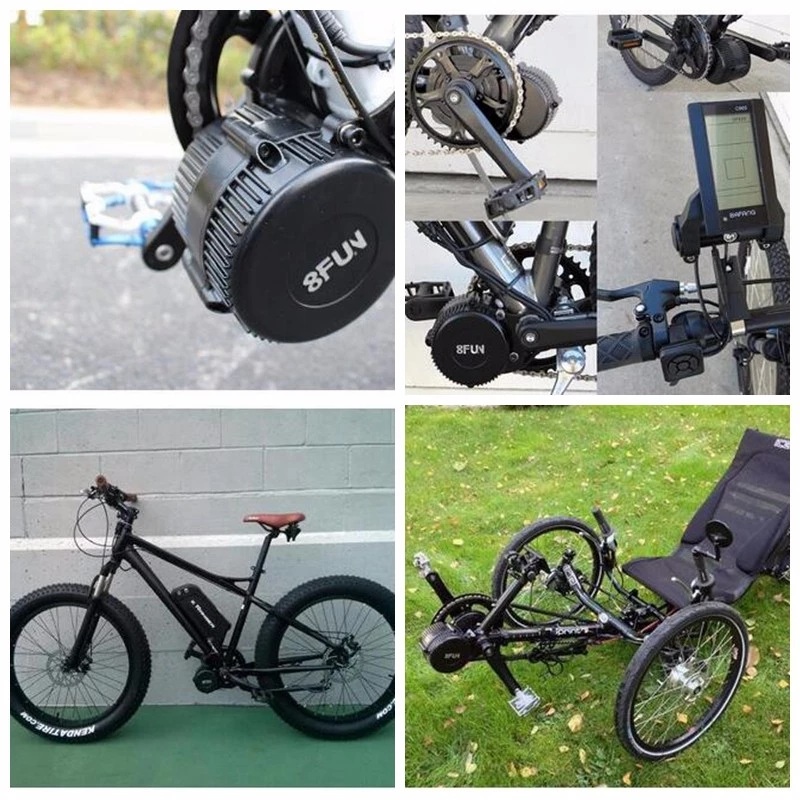

Bafang BBS mid motor application

bafang bbs02 mid motor electric bike

Bafang Mid motor types
bafang bbs01 350W mid drive motor bafang 750W electric bike kit bbs02 bafang 1000W mid drive kit
Bafang BBS01 250W 350W Bafang BBS02 500W 750W   Bafang BBSHD 1000W

Specification 250W 350W 500W 750W 1000W
Position Mid Motor Mid Motor Mid Motor Mid Motor Mid Motor
Wheel Diameter (Inch) Optional Optional Optional Optional Optional
Construction Gear drive Gear drive Gear drive Gear drive Gear drive
Rated Voltage (DCV) 36/48 36/43/48 36/48 48 48
n0 (Rpm) 83/87 83/87 120/126 160 160
Rated Power (W) 250 250/350 500 750/1000 750/1000
nT(Rpm) 78/83 78/83 113/118 140/125 140/125
Max Torque 80 N.m 80 N.m 100 N.m 160 N.m 160 N.m
Efficiency (%) ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Pedal Sensor Speed Speed Speed Speed Speed
Shaft Standard JIS JIS JIS JIS JIS
Color Black Black Black Black Black
Weight (kg) 3.8 3.8 4.3 5.6 5.6
Noise Grade (dB) < 55 < 55 < 55 < 55 < 55
Operating Temperature -20-45 -20-45 -20-45 -20-45 -20-45
Function
E-Brake Yes Yes Yes Yes Yes
Gearsensor Function Yes Yes Yes Yes Yes
Light Drive Capacity (DCV / W) 6 /3(max) 6 /3(max) 6 /3(max) 6 /3(max) 6 /3(max)
Further Specifications
Speed Detection Signal (Pulses/Cycle) 1 1 1 1 1
Reduction Ratio 01:21.9 01:21.9 01:21.9 01:21.9 01:21.9
Magnet Poles (2P) 16 16 16 8 8
Tests & Certifications
IP IP 65 IP 65 IP 65 IP 65 IP 65
Certifications CE / EN 14764 / ROHS CE / EN 14764 / ROHS ROHS CE/ EN 14764 / ROHS CE/ EN 14764 / ROHS
Salt Spray Test Standard(h) 96 96 96 96 96

For lithium battery and charger, welcome you buy them here in our bike store.

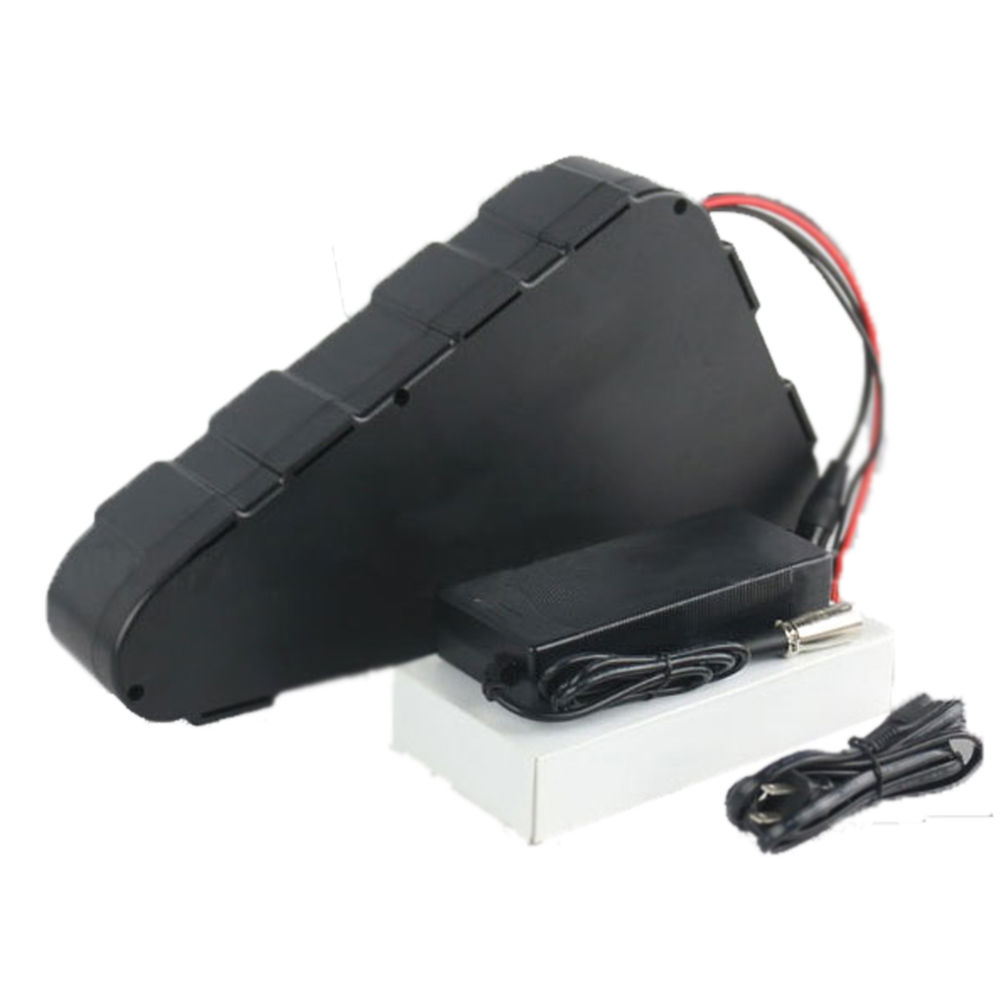

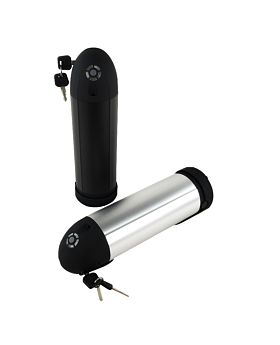

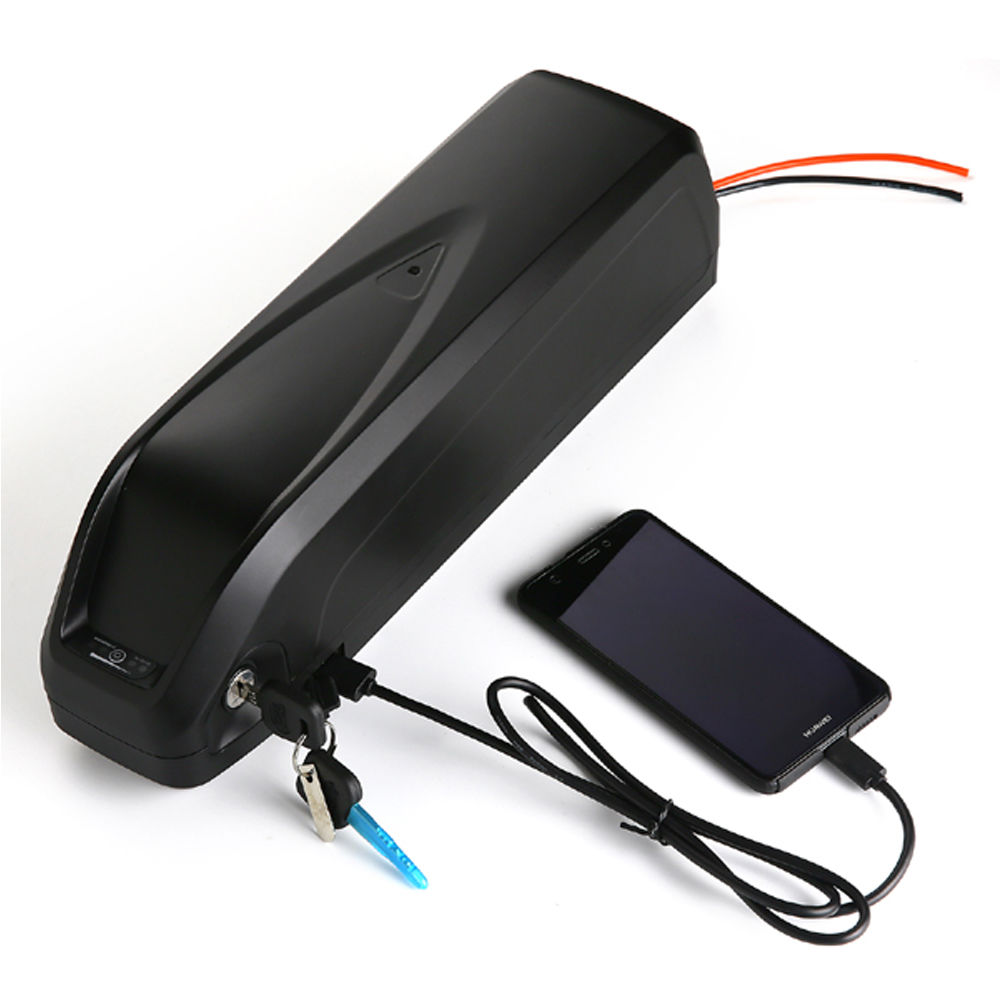

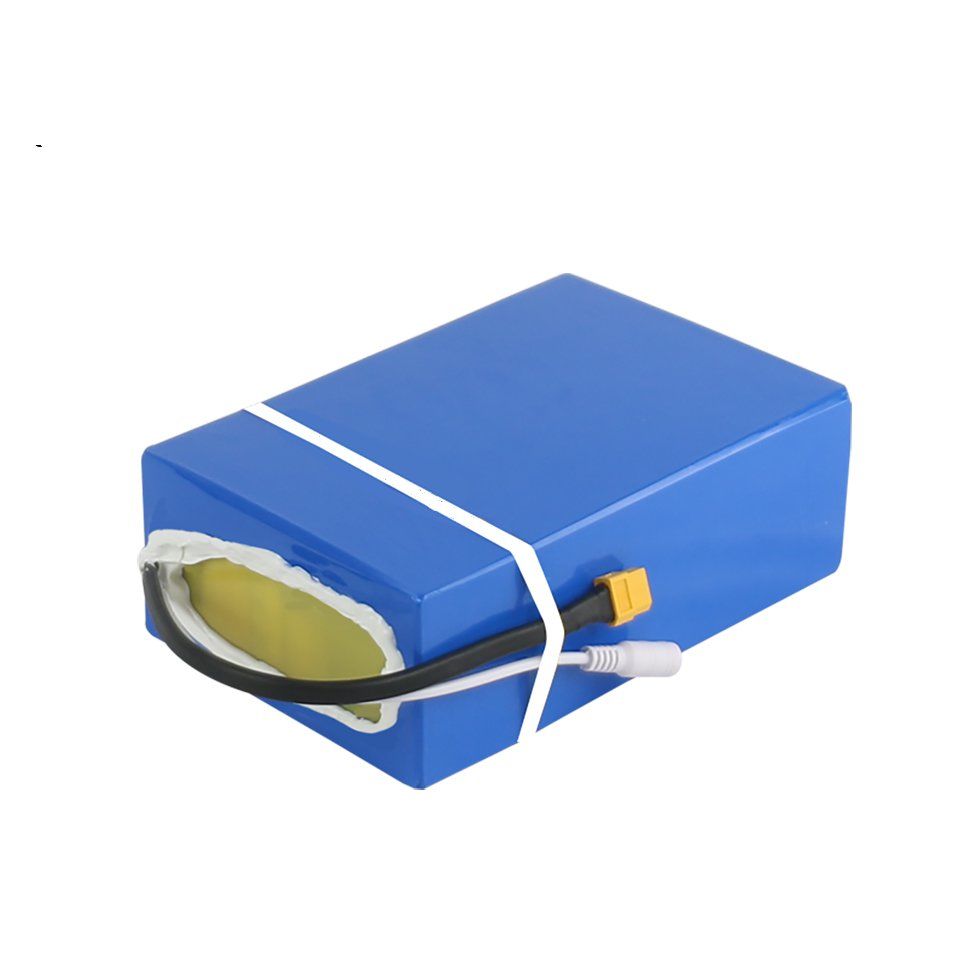

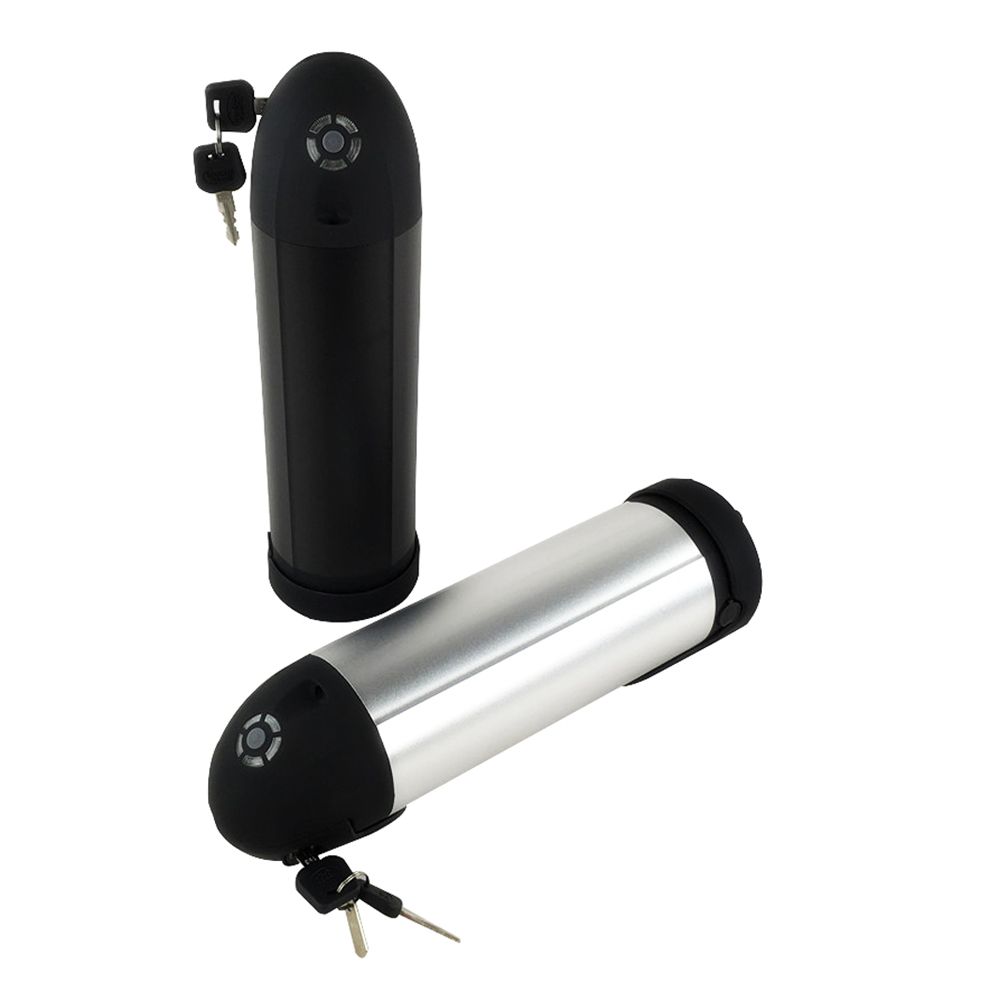

hailong lithium ion battery with USBbottle li ion battery for ebikeelectric bike  18650 li batteryDIY 18650 lithium battery pack

Download the manual of BAFANG BBS conversion kit.

Download the manual of BAFANG C961 LCD display

Download the manual of BAFANG C965 LCD display.

More Information
Voltage 36V or 48V
Wattage 250W, 350W, 500W, 750W, or 1000W
motor type Mid drive motor
Controller Build in drive system
Throttle Thumb throttle
PAS Speed sensor
Water-proof/ IP IP65
Display Optional
Part Name Qty
1 Bafang Mid Motor (with integrated controller and PAS sensor) 1 pc
2 LCD display 1 pc
3 Electric brake lever 1 pair
4 Thumb throttle 1 pc
5 Chain wheel 1 set
6 Crank arm 1 pair
7 Speed sensor and magnets 1 set
8 4-to-1 cables 1 pc
9 Nuts 1 set
