EEKit-R Electric Bike Conversion Kit Front Wheel With Rear Battery

SKU
EEKit-R
Rating:
96% of 100
In stock
$499.00
-
+
Overview

1.【 One cable 】 The EEkit has only one wireless LCD display and one thumb throttle, no PAS and E brakes, but has the same function. You could connect one cable to convert a bike to an e-bike.


2. 【 Lightweight 】 The entire kit N.W is 12.5kg, you could ride it easy even it is running out of electric power.


3. 【 Intelligent Controller 】 Controller Integrates GYRO sensor and Wireless module. The gyro sensor automatically detects the brake status to disconnect the motor from the power source.


4. 【 Mobile APP 】 Adjusts the speed Limited Speed (32km / h in the US and 25km / h in the EU).


5. 【Free Duty 】 Free Duty to EU(Germany, France, Belgium, Luxembourg, Netherlands,
Denmark, Italy, Czech Republic, Poland, Austria, Spain, Ireland, Portugal, Sweden), UK, AU.

Please search the “Wepower” in APP store or download it here- EEKit Bluetooth APP.



EEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery

You will see many electric bike conversion kit in the market, many have complex wires for connection, EEkit is truly revolutionary innovation in this industry.

The EEkit-S has only one waterproof cable in the entire system:

1. Controller to the motor

Compared to other conversion kits, it eliminates the six cables in the system, greatly reducing installation time due to excessive wiring and improving the riding experience. It is easier and fast to complete the installation without any experience or related knowledge.



Specification
Motor  Voltage 36V
250W High-speed Brushless Geared Front Motor
Torque 30Nm
Efficiency >80%
Installation width 80mm or 100mm depends on your choice
Battery Voltage 36V
Nominal capacity14.5Ah or 17.4Ah
Battery Energy 533Wh/ 626.4Wh
Battery Life 500-1000 cycles
Charging time 7-8h
Weight 4kg
Charger 110V-240V AC input, DC 42V 2A output
Controller Intelligent controller with Gyro sensor and wireless module
Display Wireless LCD display, inner battery 4.7V 450mAh- LJB602040
Throttle Thumb throttle ( integrated in the display)
Rim 20", 26", 27.5", 700C, 29"  for option
Tire Size 1.5, 1.75, 1.95, 2.125 (inch) , 700-23C, 700-25C, 700-28C, 700-35C,700-38C for option
Brake type V brake/ Disc brake compatible
Waterproof IP65
Net weight 12.5kg
Max speed 32km/h (19.9mph) for US, 25km/h(15.5mph) for EU
Range 150km/ 180km ( 93mi/ 111.6mi )   assist
Max load 120kg

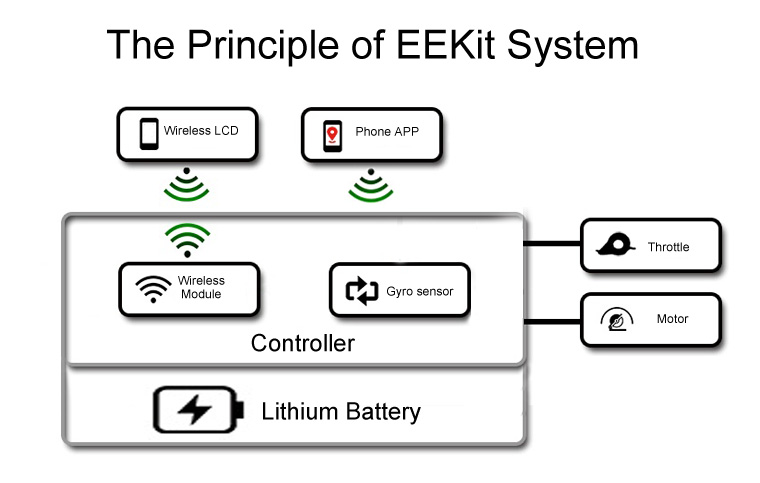

How Does This Electric Bike Conversion Kit EEKit work?

1. The Intelligent Controller Integrates The GYRO Sensor and Wireless Bluetooth Module, eliminating the need for a traditional PAS cable and LCD display cable. At the same time, the gyro sensor automatically senses the braking state, cuts off the motor power, and cancels the electronic brake. At the same time, the controller automatically adjusts the motor power when going uphill and downhill, saving energy.

2. Invented a dedicated controller for the battery compartment of the bottle, placing the controller in the battery compartment and eliminating the cable between the battery and the controller.

3.  Improve motor performance. The traditional 250w motor has 6 magnets, but the E-kit motor has 10 magnets that provide the sensitivity of the motor. At the same time, it changes the way the motor is wound and increases speed. The motor speed can reach 32km / h.

EEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery





eekit electric bike conversion kitEEKit-R Electric Bike Conversion Kit  Front Wheel With Rear BatteryEEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery

FAQ about EEKit?

1. Why the motor does not work?

If your motor doesn't work after installation, please calm down and do as the following tips.

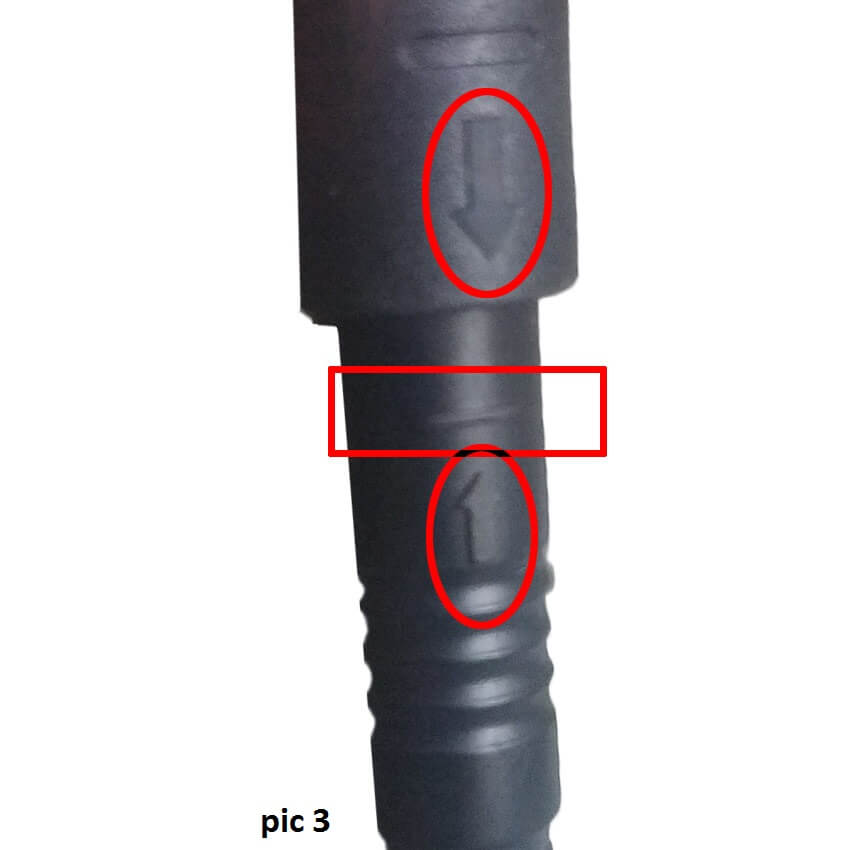

①  Check the connection of the motor. See from the pic 3, the two arrows should be aligned,

and the edge of the other end should reach the  Horizontal line.

(If it is too difficult to push the other end towards the line, please try with a  Hairdryer, with the hot wind to heat the connectors )

② Open the APP on your phone and connect the ebike. ( Refer to " How to connect the APP)

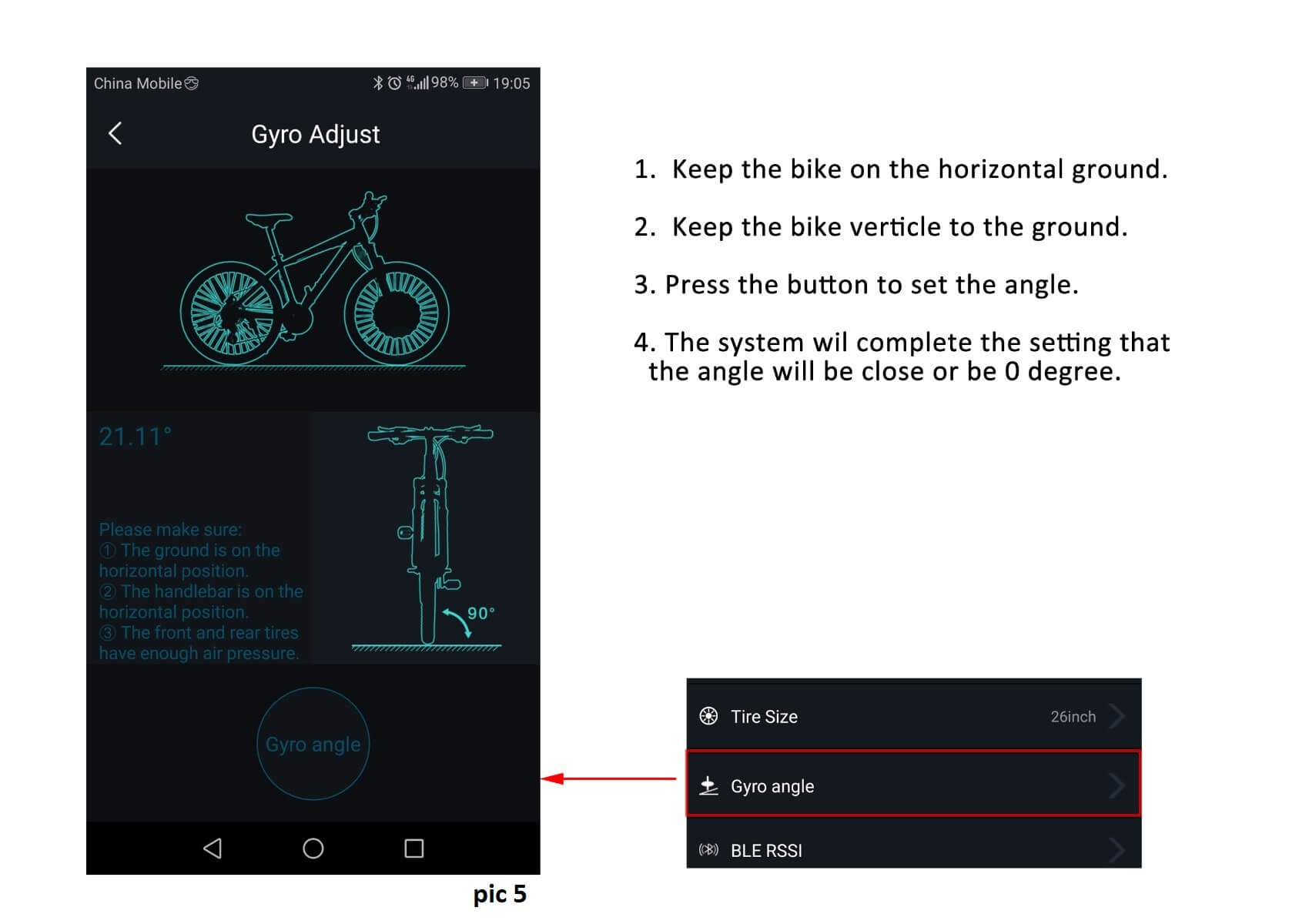

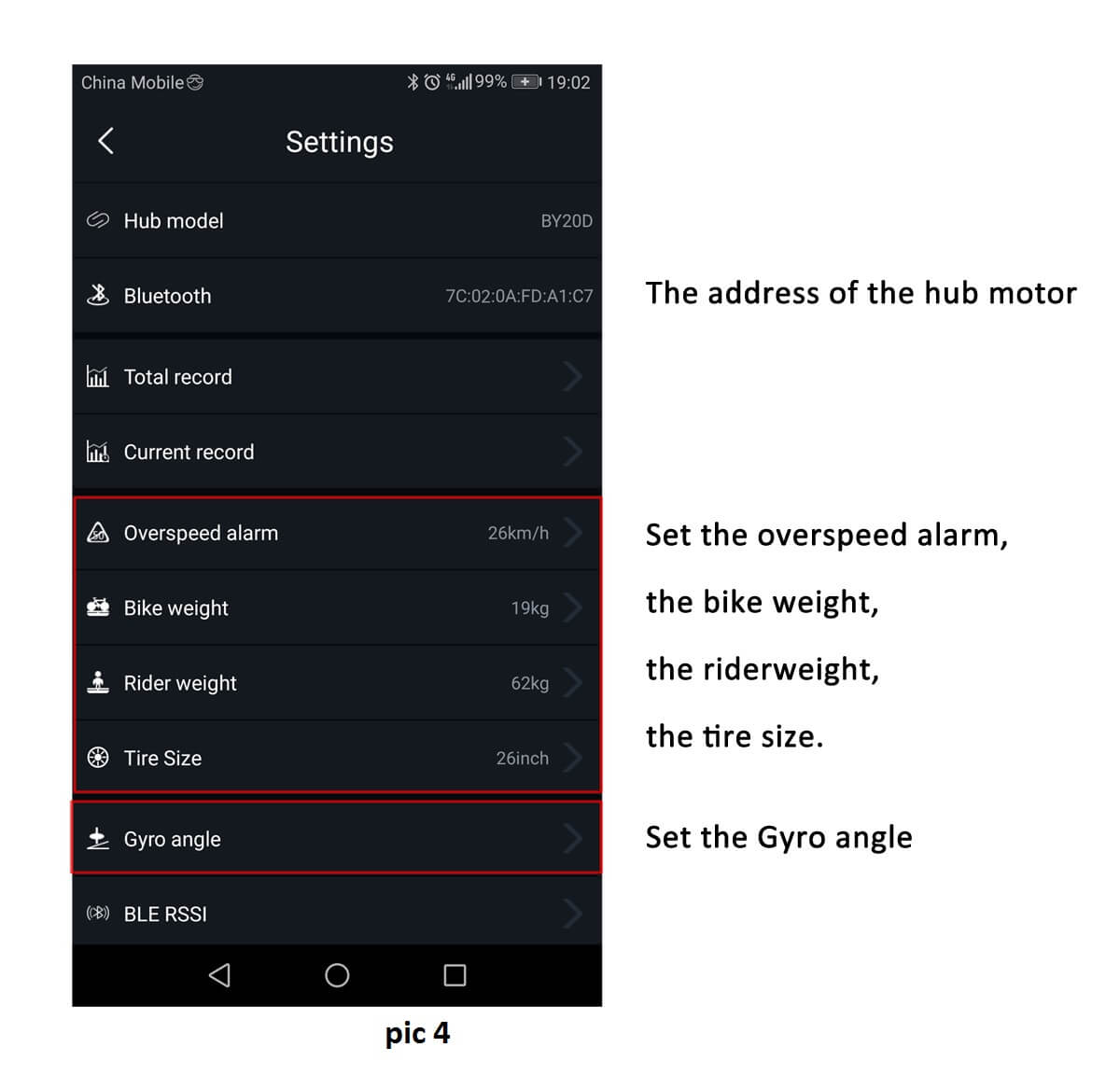

③ Complete the setting of the Alarm speed ( suggested 25km/h), bike weight, rider weight, tire size, and Gyro angle, see the pic4 and pic5.

2. How to connect the wireless LCD to the ebike?

① Press the "power" to switch on, continuously press the "power" button 3 times to scan the ebikes nearby.

② While scan finished, you will see the address with 6 codes on the display which are same with the codes pasted on the controller.

For two more electric bikes, press button"+" or "-" to select the right Bluetooth address.

③ Press the "power" to connect the electric bike after selecting the address.

3. How to connect the APP?

① Search and Download the "wepower" in Google player or App store.

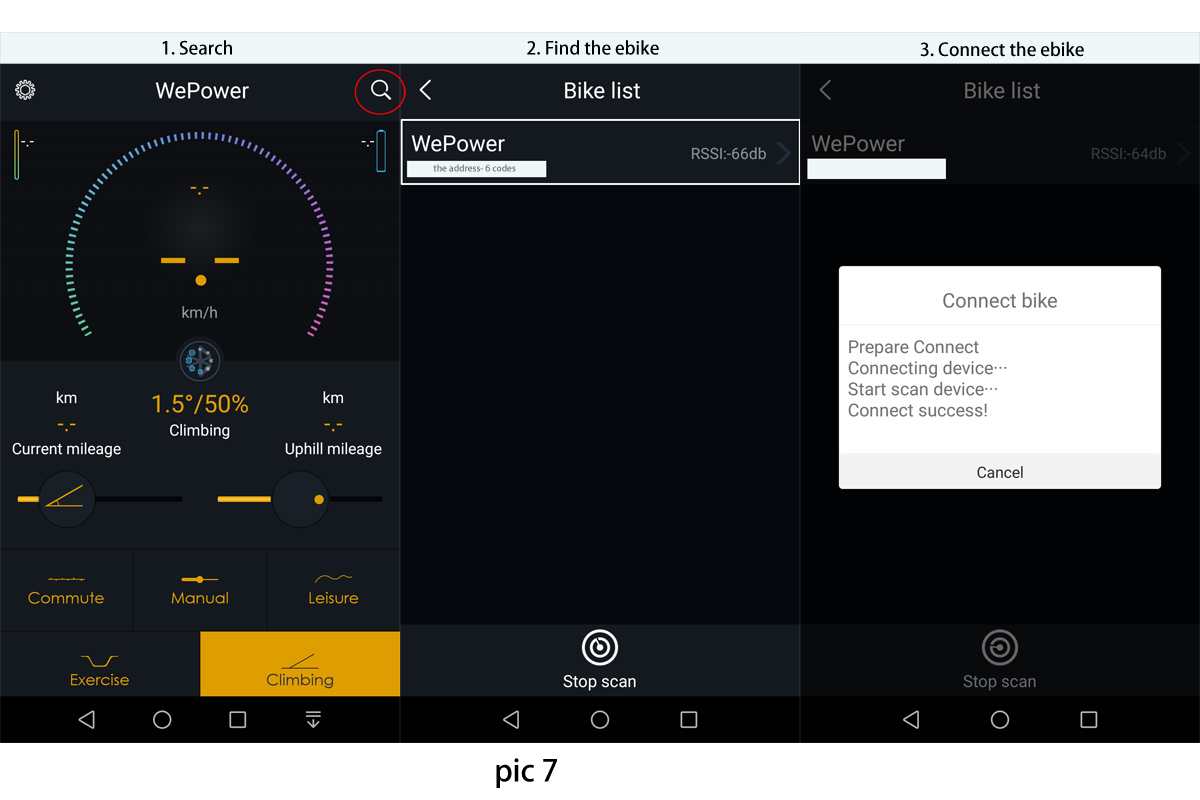

② Open the " wepower" after installation completed, click the search button at the top right corner to find the electric bike

and then connect it. See the pic 7.

EEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery appEEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery

4. Does the kit fit my bike?

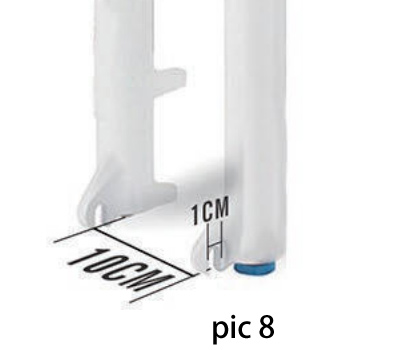

The kit fits most of the bikes- city bikes, mountain bikes,

road bikes with the front fork as the pic 8.

5. Could it work without the display?

Yes, it works well without the display.  The display is for convenient operation when riding.



While choosing the Rim and Tire, you could choose the one with the same marking on the tire  or refer to the blog

How to choose the bike tires for your rim?- bicycle tire marking.



 More popular electric bike conversion kits

bafang bbs mid drive motor kitimortor electric bike conversion kitrear electric bike kit48V 1000W rear electric bike kit

More Information
Voltage 36V
Wattage 250W
motor type Front geared hub motor
Controller 36V intelligent controller
Battery & Charger 36V bottle battery, 110-220V input 42V 2A output charger
PAS N/A
Throttle Thumb throttle
Display Bluetooth/ Wireless LCD
wheel size 20" - 28"
Battery and Charger N/A

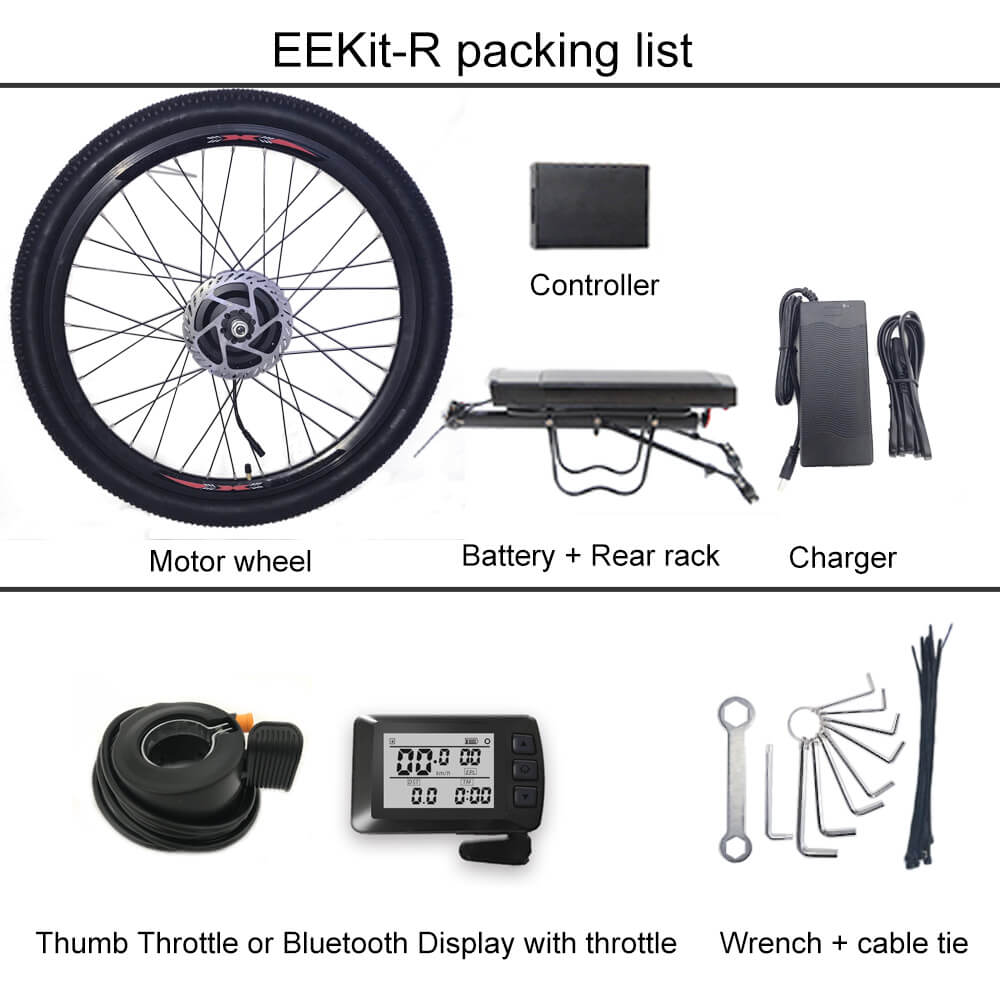

No. section Quantity
1

250W motor wheel

1 item
2 36V 14.5Ah / 17.4Ah bottled battery with a controller  1 item
3 Lithium-ion battery charger (110-220V, 42V 2A, US / EU plug) 1 item
4 Wireless liquid crystal display plus thumb throttle 1 item

EEKit-R Electric Bike Conversion Kit  Front Wheel With Rear Battery
