How to choose the bike tires for your rim?-  bicycle tire marking



As the bicycle tire will be worn off by driving day by day. When you have to change the tires on your bike, how could you choose the right tires for your original rim?

It is an easy way to choose a same size tire as the worn one.

The tyre size would be read on the marking. What does the bicycle tire marking mean?



 bicycle tire brandbicycle tire markingbicycle tire pressure

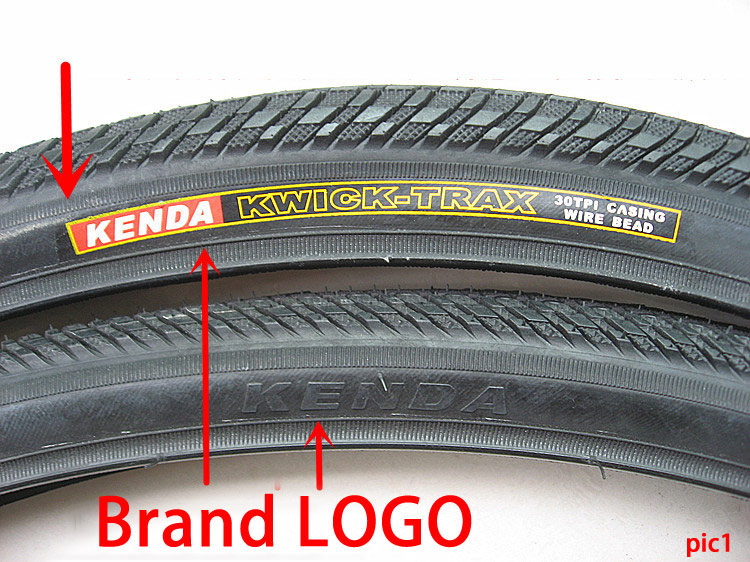

Seen from the pic1, we could find the tire brand easily. There are many different bicycle tire brands, such as Michelin, Continental, Schwalbe, Maxxis, Kenda, CST etc.

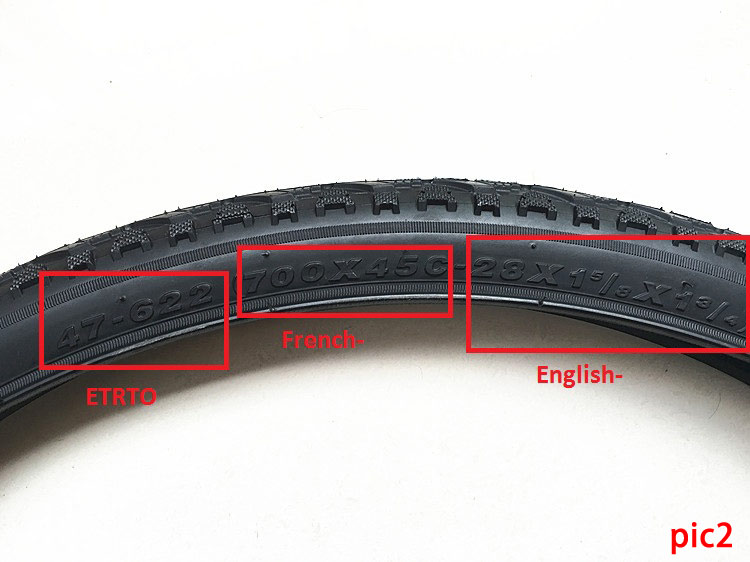

From the pic2, we could see 47-622( 700×45C- 28×1 5/8 × 1 3/40 on the tire.  The 47 is the inflated width in mm and the 622 is the internal diameter in mm. It's according to the European ETRTO standard tire sizes. In brackets are the French size (700mm outer diameter x 45mm width) and the Inch size (28 outer diameter x 1 5/8 height-indicates the height from the bead to the top x 1 3/4 width, if the width is same as the height then it would not be listed )

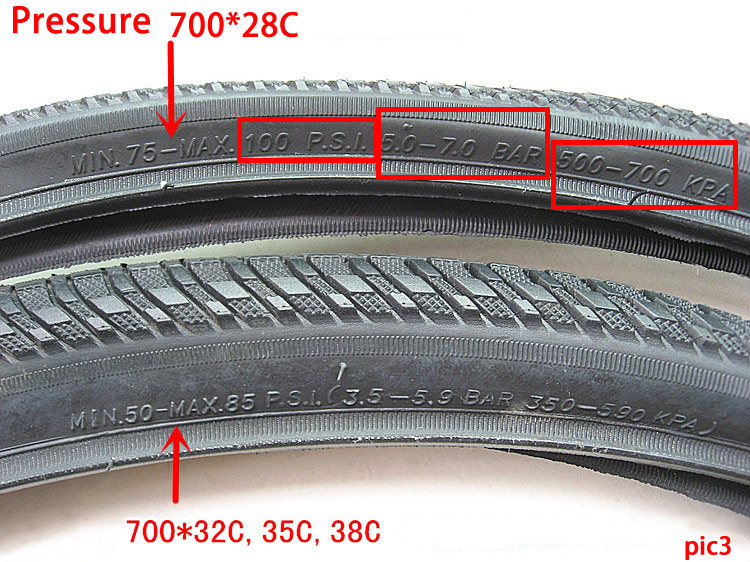

From the pic3, we could see the pressure marking which will guide to inflate the tire in a suitable pressure. As there are different units be used to express pressure, such as P.S.I.(the pound-force per square inch),  BAR,  PA( one newton per square meter), you could refer one unit when adjusting the tire pressure.



By learning about the tire markings, you would not be worried about to choose the wrong size tire.

Besides, here below are the bicycle tire sizes table. The table allows you to convert between ETRTO, English-, French-.


Tire outer diameter

ETRTO (mm)

English Size ( inch )

French Size (mm)

7"

47-93

7 x 1 3/4



8"

47-94

20 x 47-50
8 x 2



50-94

200 x 50



54-110

8 1/2 x 2 1/8
8 1/2 x 2



32-137

10 x 2
10 x 11/4



10"

54-152
44-194

10 x 2
10 x 1 5/8



11"

47-222

11 x 1 3/4



12"

47-203

12 1/2 x 1.75
12 1/2 x 1.90



50-203

12 x 2.00



54-203

12 x 1.95



57-203

12 1/2 x 2 1/4 R



62-203

12 1/2 x 2 1/4



32-239

12 1/2 x 1 3/8 x 1 1/4

300 x 32A

57-239

12 1/2 x 2 1/4

300 x 55A

14"

57-251

14 1/2 x 2 1/4

300 x 55A

47-254

14 x 1.75
14 x 1.90



50-254

14 x 2.00



40-279

14 x 1 1/2

350 x 38B

37-288

14 x 1 5/8 x 1 3/8

350A
350A Confort
350A Ballon
350A 1/2 Ballon
350 x 32A

40-288

14 x 1 5/8

350 x 38A

44-288

14 x 1 5/8 x 1 3/8

350A
350 x 42A

32-298

14 x 1 1/4

350A
350 x 32A

16"

40-305

16 x 1.50



47-305

16 x 1.75
16 x 1.90



50-305

16 x 2.00



54-305

16 x 1.95
16 x 2.00



57-305

16 x 2.125



40-330

16 x 1 1/2

400 x 38B

28-340



400 x 30A

32-340

16 x 1 3/8 x 1 1/4

400A
400 x 32A

37-340

16 x 1 3/8

400 35A
400A Confort
400A Ballon
400A 1/2 Ballon

44-340

16 x 1 5/8



28-349

16 x 1 1/8



32-349

16 x 1 1/4 NL



35-349

16 x 1.35



37-349

16 x 1 3/8



17"

32-357

17 x 1 1/4



32-369

17 x 1 1/4



18"

28-355

18 x 1 1/8



35-355

18 x 1.35



40-355

18 x 1.50



47-355

18 x 1.75
18 x 1.90



50-355

18 x 2.00



37-387

18 x 1 3/8



40-387

18 x 1 1/2



28-390

18 x 1 1/8

450 x 28A
450A

37-390

18 x 1 3/8

450 x 35A
450A
450A Confort
450A Ballon
450A 1/2 Ballon

55-390



450 x 55A

57-390



450 x 55A
450A

37-400

18 x 1 3/8



20"

54-400

20 x 2 x 1 3/4
20 x 2 F 4J



28-406

20 x 1.10



32-406

20 x 1.25



35-406

20 x 1.35



37-406

20 x 1 3/8



40-406

20 x 1.50



42-406

20 x 1.60



44-406

20 x 1.625



47-406

20 x 1.75
20 x 1.90



50-406

20 x 2.00



54-406

20 x 2.00



57-406

20 x 2.125



60-406

20 x 2.35



54-428

20 x 2.00



40-432

20 x 1 1/2



37-438

20 x 1 3/8

500A

40-438

20 x 1 3/8 x 1 1/2

500 x 38A

28-440



500 x 28A
500A
500A Standard

37-440



500 x 35A
500A Confort
500A Ballon
500A 1/2 Ballon

40-440

20 x 1 1/2 NL

500 x 38A

28-451

20 x 1 1/8



37-451

20 x 1 3/8 B.S.



22"

44-484

22 x 1 5/8 x 1 1/2



25-489

22 x 1.00



37-489

22 x 1 3/8 NL



40-489

22 x 1 3/8 x 1 1/2



50-489

22 x 2.00



28-490



550 x 28A
550A
550A Standard

32-490

22 x 1 3/8 x 1 1/4

550 x 32A
550A

37-490

22 x 1 3/8

550 x 35A
550A Confort
550A Ballon
550A 1/2 Ballon

37-498

22 x 1 3/8 x 1 1/4



32-501

22 x 1 1/4



37-501

22 x 1 3/8



24"

40-507

24 x 1.50



44-507

24 x 1.625
24 x 1.75



47-507

24 x 1.75
24 x 1.85/1.90



49-507

24 x 1.85



50-507

24 x 1.90/2.00
24 x 2.00
24 x 2.125



54-507

24 x 2.10



57-507

24 x 2.125
24 x 2.00



60-507

24 x 2.35



62-507

24 x 2.40



23-520

24 x 7/8



44-531

24 x 1 5/8 x 1 1/2



40-534

24 x 1 1/2



25-540

24 x 1.00



32-540

24 x 1 3/8 x 1 1/4
24 x 1 3/8



37-540

24 x 1 3/8



40-540

24 x 1 3/8 x 1 1/2



22-541





25-541



600 x 25A

28-541



600 x 28A
600A
600A Standard

32-541

24 x 1 3/8 x 1 1/4 NL

600 x 32A

37-541



600 x 35A
600A Confort
600A Ballon
600A 1/2 Ballon

25"

57-520

25 x 2.25



26"

25-559

26 x 1.00



28-559

26 x 1.10



35-559

26 x 1.35



37-559

26 x 1 5/8 x 1 3/8
26 x 1.40



40-559

26 x 1.50



42-559

26 x 1.60



44-559

26 x 1.625
26 x 1.50/1.75



47-559

26 x 1.75
26 x 1.85/1.90



50-559

26 x 1.90
26 x 1.95
26 x 1.90/2.00
26 x 2.00/2.10



54-559

26 x 1.95
26 x 2.10
26 x 2.125



57-559

26 x 2.125



57-559

26 x 2.20/2.25



60-559

26 x 2.35



62-559

26 x 2.40
26 x 2.50



20-571

26 x 3/4

650 x 20C

23-571

26 x 7/8

650 x 22C

40-571

26 x 1 1/2 CS
26 x 1 3/8 x 1 1/2 NL
26 x 1 5/8 x 1 1/2

650 x 35C
650 x 38C

47-571

26 x 1 3/4
650 CS Confort

650 x 45C

54-571

26 x 2 x 1 3/4

650 x 50C

28-584

26 x 1 1/8 x 1 1/2

650 x 28B

32-584



650 x 32B

35-584

26 x 1 3/8 x 1 1/2

650 x 35B
650B Standard

37-584

26 x 1 1/2 x 1 3/8
26 x 1 1/2

650 x 35B

40-584

26 x 1 5/8 x 1 1/2
26 x 1 1/2

650 x 35B
650 x 38B

44-584

26 x 1 5/8 x 1 1/2

650 x 42B
650BSemi-Confort
650B 1/2 Ballon

54-584

26 x 1 1/2 x 2



20-590



650 x 20A

25-590

26 x 1 1/8 x 1 1/4
26 x 1 3/8 x 1 1/8 - 1 1/4

650 x 25A

28-590

26 x 1 1/8

650 x 28A

32-590

26 x 1 1/4
26 x 1 3/8 x 1 1/4

650 x 32A

35-590

26 x 1 3/8

650 x 35A

37-590

26 x 1 3/8

650 x 35A
650A

40-590

26 x 1.50
26 x 1 3/8 x 1 1/2

650 x 38A

44-590





32-597

26 x 1 1/4



27"

40-609

27 x 1 1/2



20-630

27 x 3/4



22-630

27 x 7/8



25-630

27 x 1.00
27 x 11/16



28-630

27 x 1 1/8
27 x 1 1/4 Fifty
27 x 1 1/4



32-630

27 x 1 1/4



28/32-630

27 x 1 1/4



35-630

27 x 1 3/8



28"

18-622

28 x 3/4

700 x 18C

19-622



700 x 19C

20-622

28 x 3/4

700 x 20C

22-622

28 x 7/8

700 x 22C

23-622

28 x 7/8

700 x 23C

25-622

28 x 1.00
28 x 1 1/16

700 x 25C

28-622

28 x 1.10
28 x 1 5/8 x 1 1/8

700 x 28C

30-622

28 x 1.20

700 x 30C

32-622

28 x 1.25
28 x 1 5/8 x 1 1/4

700 x 32C
700 Course

35-622

28 x 1.35
28 x 1 5/8 x 1 3/8

700 x 35C

37-622

28 x 1.40
28 x 1 5/8 x 1 3/8

700 x 35C

40-622

28 x 1.50
28 x 1 5/8 x 1 1/2

700 x 38C

42-622

28 x 1.60

700 x 40C

44-622

28 x 1.625

700 x 42C

47-622

28 x 1.75

700 x 45C

50-622

28 x 1.90
28 x 2.00



54-622

28 x 2.10
29 x 2.10



57-622

28 x 2.10
29 x 2.10



60-622

28 x 2.35



32-635

28 x 1 1/2 x 1 1/8

770 x 28B
700 x 28B
770B COURSE

40-635

28 x 1 1/2
28 x 1 1/2 x 1 3/8

700 x 38B
700 x 35B
700 Standard
700B Standard

44-635

28 x 1 5/8 x 1 1/2

700 x 40/42B

28-642

28 x 1 3/8 x 1 1/8

700 x 28A

37-642

28 x 1 3/8

700 x 35A
