Smart Battery BMS 13S 48V Lithium Or Li-ion Battery Protection Board

SKU
SBMS13S
Rating:
93% of 100
In stock
Shipping cost around: 7$ to 23$ delivery to United States
$34.90
-
+
Overview
  • smart BMS with Bluetooth and PC communication which will be used to protect and monitor your battery status visible from the computer and your android APP phone
  • The protection board is for 13 series-48V lithium batteries, it can be used for ternary lithium batteries, manganese acid lithium batteries, cobalt acid lithium batteries and LiFePO4 batteries.
  • Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.
  • Batteries core hardware smart balanced processing, properly balanced current, reasonably balanced heat emitting, improve the performance of battery pack.
  • Warranty for 12 months, delivery arranged in 3-5 days.

Download the Driver.

Function:

1). detection and protection of over-charge,over-discharge.
2). detection short-circuit of charging port, with two layers protection against over-voltage when charging.
3). voltage balancing.
4). detection of wires disconnection.

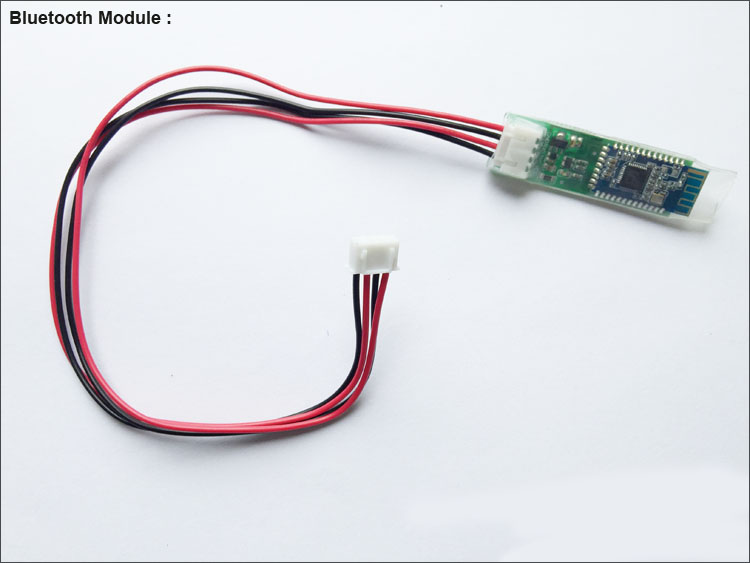

5). With Mobile phone ( Android system 4.3Version or higher) operation software system to manage the detecting the battery working status and some parameters setting. ( with Bluetooth)

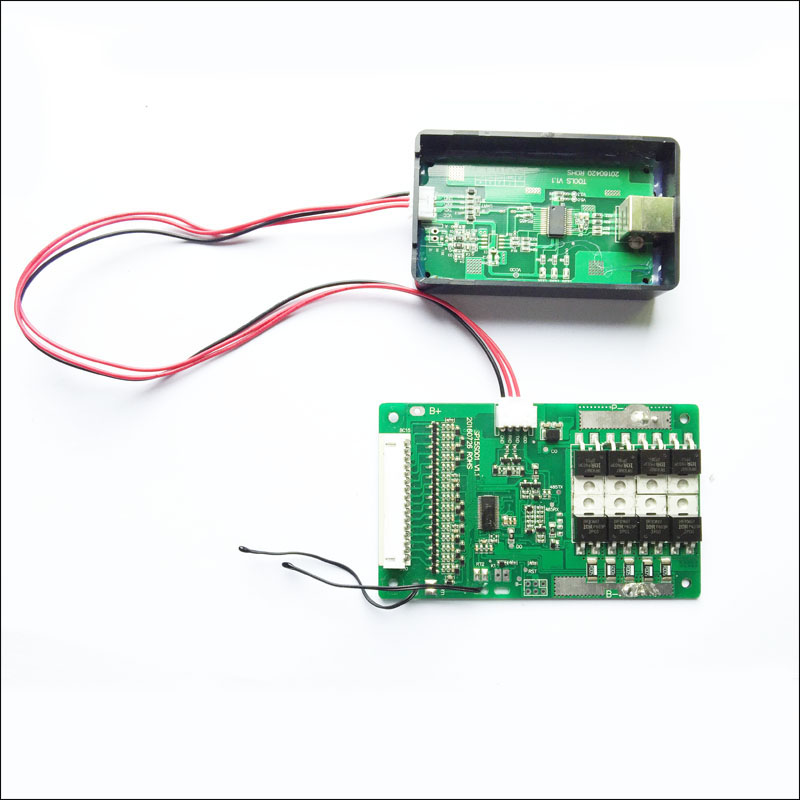

6). With PC operation to manage the detecting the battery working status and some parameters setting. ( with UART module)

Smart battery management system 36V 10S BMS

Smart battery management system 36V 10S BMS

How to use the 36V 10S Smart battery management system with Bluetooth?

36V 10S BMS battery management system36V 10S BMS battery management system

How to use the 36V 10S Smart battery management system with PC Communication module?

 36V 10S Smart battery management system  36V 10S Smart battery management system with software

Kindly remind!

  • 1. before installing the protection board, the battery cells must be matched well (each the voltage difference between each cell is smaller than 0.05V, internal resistance difference is not more than 5mΩ, the capacity difference is less than 30mAh). The better of the battery cells consistency, the longer running distance.
  • 2. The battery should be connected in parallel first and then connected in series to ensure the welding is correct. Please use the nickel strip to weld the18650 battery cells, other batteries with solder. Do not use screws for the battery cells connection or it may burns out the protection board IC.
More Information
Size 108*65*10 mm
Charging voltage 54V
Charging current 5A
Discharging current constant 15A- 60A
Cable length 40cm
