Battery Management System 10S 36V 100A 120A BMS Battery Protection Board

SKU
SBMS-10S-100
In stock
Shipping cost around: 7$ to 23$ delivery to United States
$35.00
-
+
Overview
  • The BMS( Battery Management System) is for 10 series-36V lithium batteries, it can be used for ternary lithium batteries, manganese acid lithium batteries, cobalt acid lithium batteries.
  • Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.
  • Batteries core hardware smart balanced processing, properly balanced current, reasonably balanced heat emitting, improve the performance of battery pack.
  • Warranty for 6months, delivery arranged in 3-5 days.

Function:

1). detection and protection of over-charge,over-discharge.
2). detection short-circuit of charging port, with two layers protection against over-voltage when charging.
3). voltage balancing.
4). detection of wires disconnection.

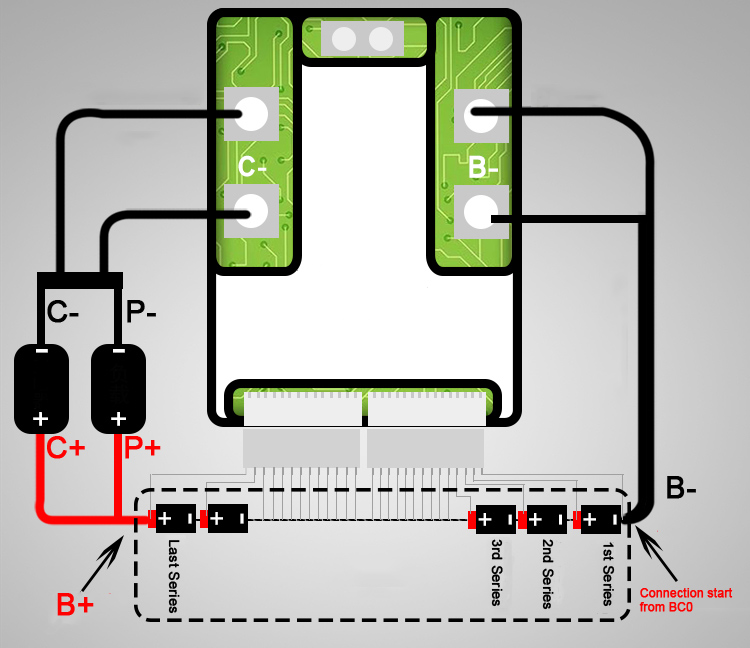

36V 10S 100A 120A BMS battery management system

36V 10S 100A BMS battery management system

Kindly remind!

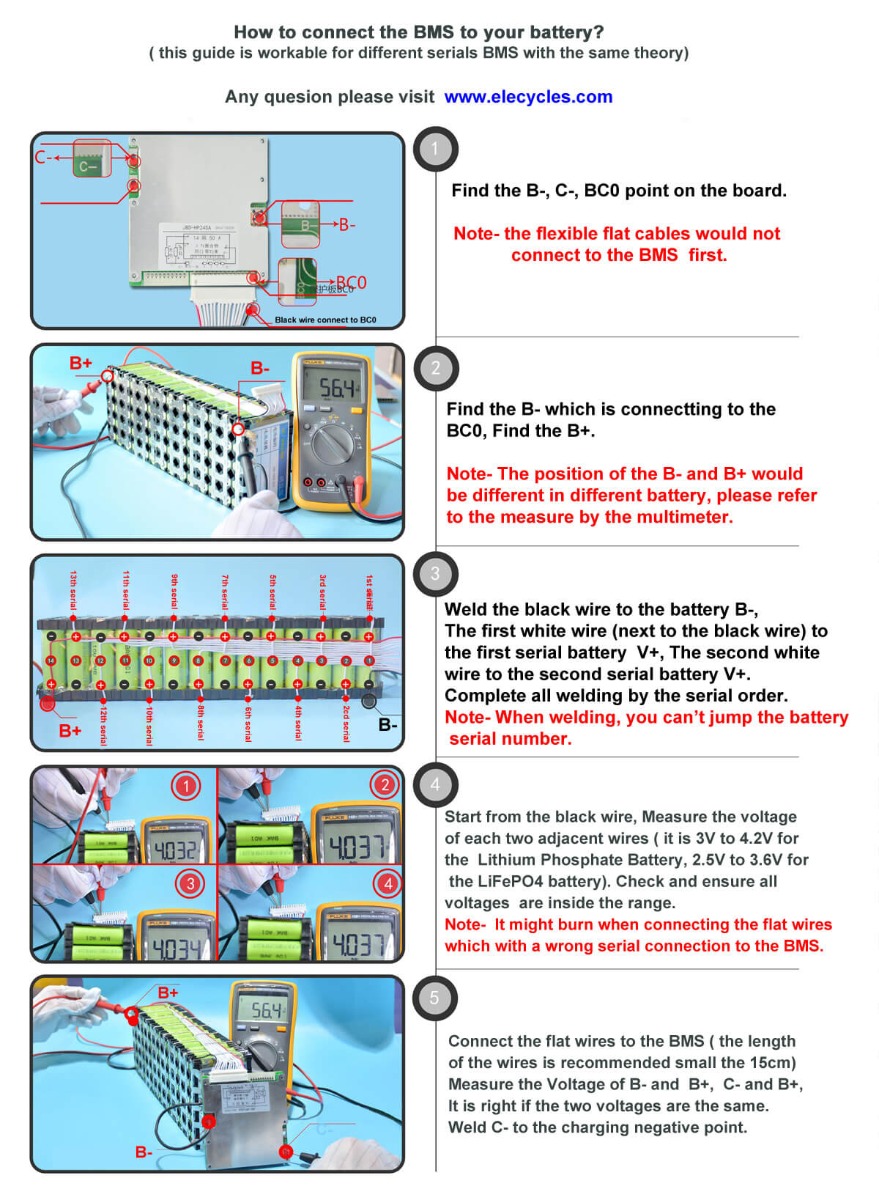

  • 1. before installing the protection board, the battery cells must be matched well (each the voltage difference between each cell is smaller than 0.05V, internal resistance difference is not more than 5mΩ, the capacity difference is less than 30mAh). The better of the battery cells consistency, the longer running distance.
  • 2. The battery should be connected in parallel first and then connected in series to ensure the welding is correct. Please use the nickel strip to weld the18650 battery cells, other batteries with solder. Do not use screws for the battery cells connection or it may burns out the protection board IC.

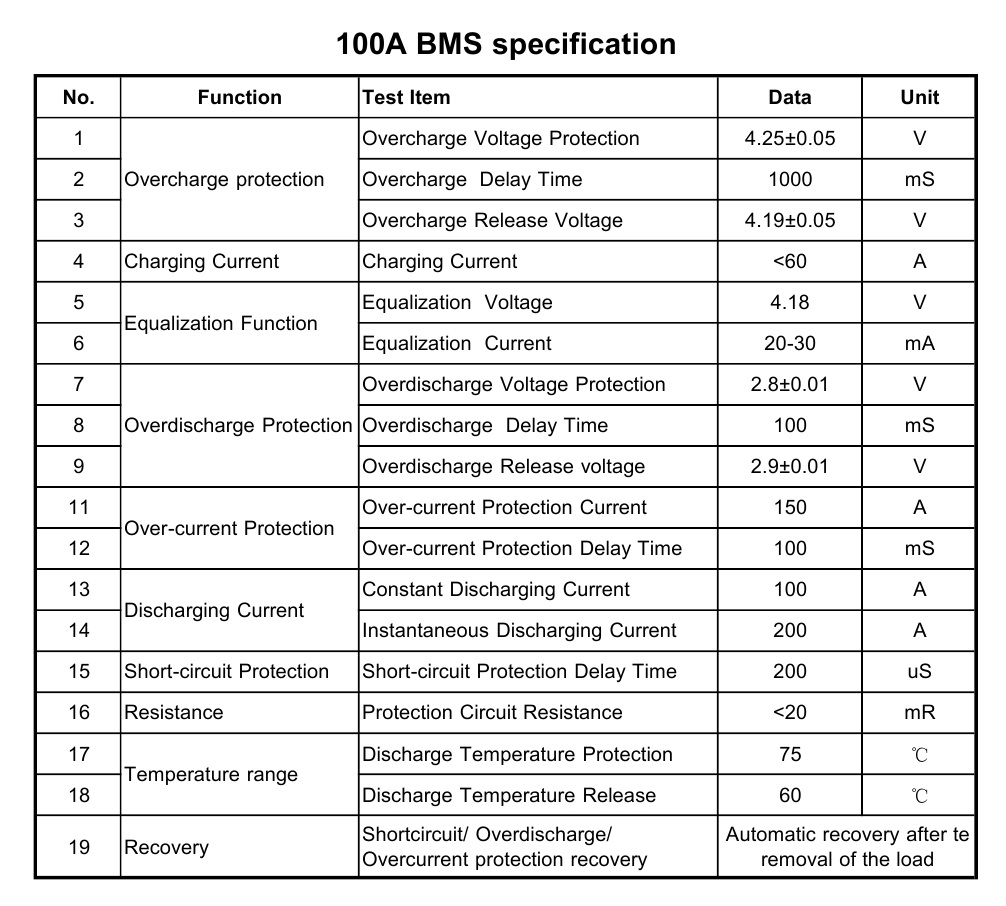

More Information
Size 150*105*23 (mm)
Charging voltage 42V
Charging current N/A
Discharging current 60-100A
Cable length 40cm
