BAFANG BBS Color Screen TFT 850C LCD display

Bafang 850C
In stock
Shipping cost around: 15$ to 49$ delivery to United States
  • The BAFANG 850C LCD display is compatible with Bafang BBS01, BBS02, and BBSHD.

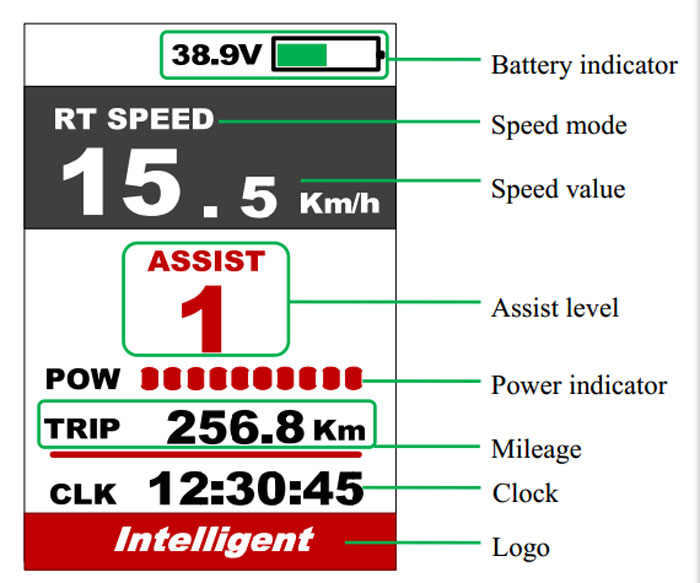

  • The 850C LCD display shows lithium battery capacity, speed, distance,  assist levels, walking mode etc.
  • Waterproof cable, easy install.
  • Delivery in 7-15 days.

The 850C LCD display works well in BAFANG BS01, BB202, BBSHD mid-motor conversion kit.

BAFANG BBS mid-motor kit bafang bbs01 bafang electric bike kit bafang mid drive kit
Bafang BBS mid mmotor kit Bafang BBS01 36V 250W  Bafang BBS01 36V 350W   Bafang BBS01 48V 350W
bafang bbs02b  350W bafang 8fun mid drive bafang max drive system bafang ultra drive system
Bafang BBS02 36V 500W Bafang BBS02 48V 500W Bafang BBS02 48V 750W Bafang BBSHD 48V 1000W

bafang 850C  display for 500W  bafang BBS02

bafang 850C  display for 750W  bafang BBSHD

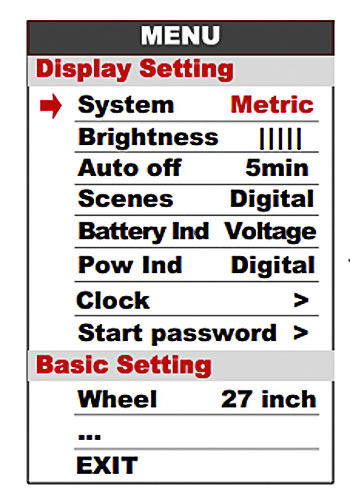

bafang 850C  display setting

Electrical Parameters
1 3.2inch IPS screen
2 24V/36V/48V battery supply
3 Rated operating current: 40mA
4 Max operating current: 100mA (36V battery, with USB equipment charged)
5 USB charging port : 5V 500mA
6 Off leakage current < 1uA
7 Max output current to controller : 100mA
8 Operating temperature: 20~70℃, Storage temperature: 30~80℃

1 Suitable for low temperature,Max -20℃.

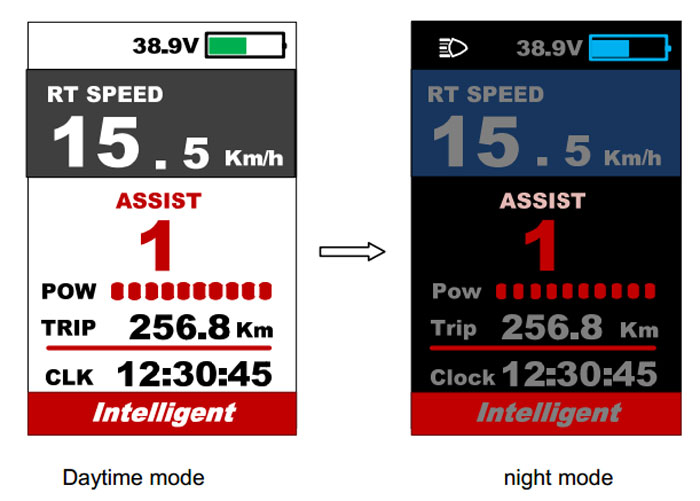

2 High-contrast 3.2inch IPS colorful matrix screen.
3 Ergonomic external button design, easy to operate.
4 Speed display: AVG SPEED, MAX SPEED, SPEED(Real-time).
5 Kilometer / Mile: Can be set according to customers’ habits.
6 Smart battery indicator: Provide a reliable battery indicator.
7 9-level Assistance: 3-level/5-level/9-level optional.
8 Mileage indicator: Odometer/Trip distance/ Clock/ Riding time.
9 Power indicator: real-time power indicator, digital or analog.
10 Error code indicator.
11 Software upgraded: Software can be upgraded through UART.
12 USB charging port: 5V/500mA
