3000W 5000W 8000W Bomber Electric bike Frame (Customize is available)

97% of 100
In stock
  • 1. This bomber electric bike frame is designed for the assembly of the electric bike from 3000W to 8000W.
  • 2. Frame Color: Black, White, Red.
  • 3. This frame has a large space for the battery pack (72v 40ah Panasonic).
  • 4. It is comfortable to install electric parts. All Cable connections can be put inside the cover of the controller.
  • 5. The handling time is with 10days.
  • 6.Tax-free to the following countries- Germany, France, Belgium, Luxembourg, Netherlands,
    Denmark, Italy, Czech Republic, Poland, Austria, Spain, Ireland, Portugal, Sweden.

3000W 5000W 8000W electric bike bomber stealth bike frame3000W 5000W 8000W electric bike bomber stealth bike frame

3000W 5000W 8000W electric bike bomber stealth bike frame3000W 5000W 8000W  Electric Bike Stealth Bomber bike frame- 3000W 5000W 8000W Bicicleta eléctrica Stealth Bomber marco de bicicleta

Bomber Electric bike frameBomber Electric bike frame

Specification of the Frame

1. Frame Material: Carbon steel

2. Frame Dropout: 170mm

3. Frame Color: Black, White or Red

4. Frame Weight (without the battery case): 18.2kg

5. Battery Case Weight: 2.5kg

6. Bottom Bracket: 68mm, included in the price.

7. Package Size: 760*525*220 mm

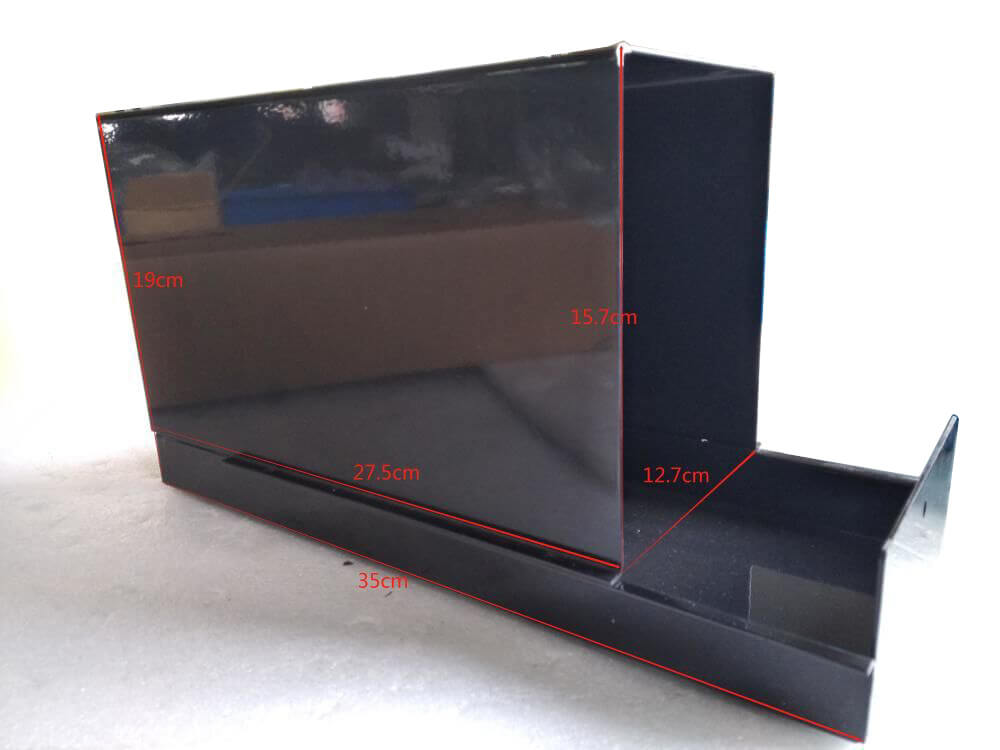

8. Battery case: 27.5 * 12.77 *19 cm

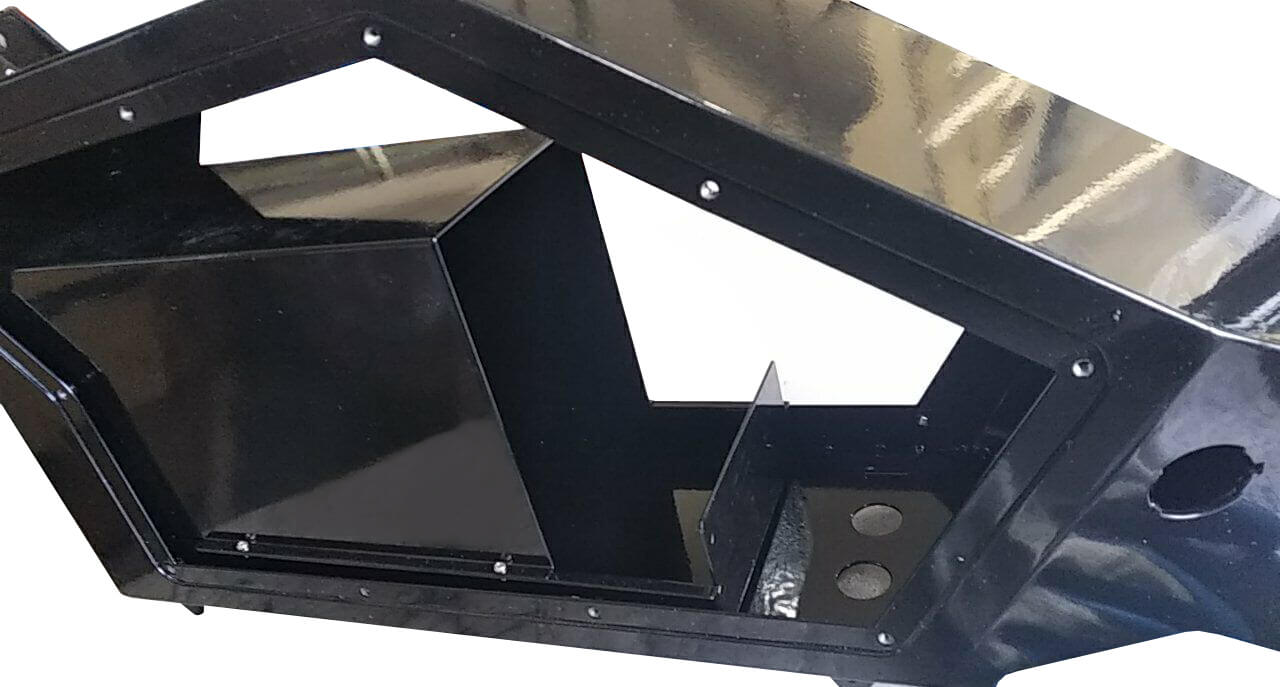

Bomber Electric bike battery case Bomber Electric bike battery case


Recommended components for assembly

1. Motor: 3000W, 5000W, 8000W Motor (60V or 72V)

2. Front fork: 180mm travel

3. Rear shock absorber: 200 × 56 mm ( 7.87 × 2.20 inch)

4. Tire size: 26"*2.6", 26"*3.0", 26"*4.0"

5. Seat post: 27.2mm diameter

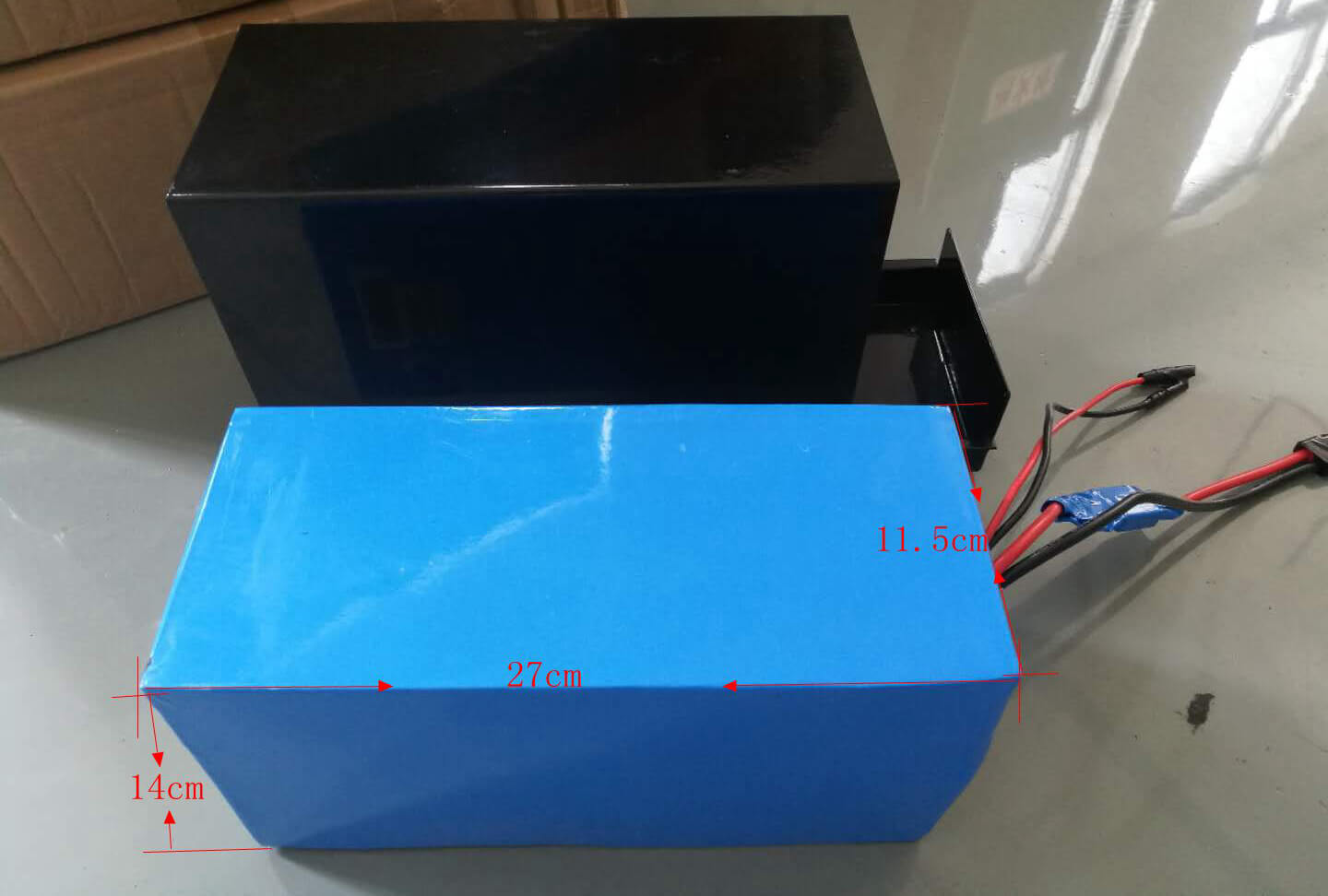

6. Lithium battery( Popular): 72V 26Ah or 72V 40Ah.

Choose a motor?

3000W electric bike motor5000W electric bike motor

Choose a lithium battery or a controller?

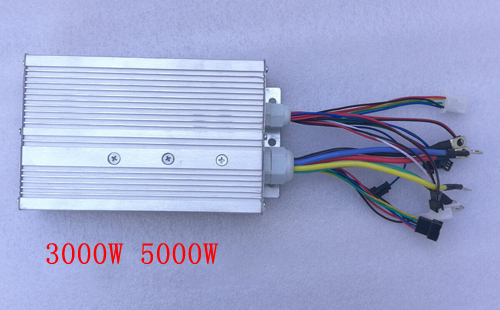

Bomber Electric bike battery Bomber Electric bike controller

More Information
Material high carbon steel
Weight 19.5kg
Color N/A
Install way N/A
Rim size N/A
