KT Controller 36V 48V 250W/350W/500W/750W Electric bicycle controller

SKU
KT-controller
Rating:
87% of 100
In stock
Shipping cost around: 15$ to 37$ delivery to United Kingdom
$33.50
-
+
Overview

  • KT Series controller, 36V/ 48V 250W/ 350W/ 500W/ 750W/ 1000W, support LED, LCD3, LCD5 etc.
  • Square wave control also working when the motor hall damage.
  • Waterproof IP64.
  • The front light voltage is the same as the controller (36V or 48V), could not be controlled by the display.
  • Handling time: 3-5 days.

Product Features:

  • Use imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
  • Electric power assist is with fast response and always consistent with the rider’s pedal action to achieve the effect of the torque boost.
  • With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
  • These KT controllers could work with any ebike brushless motor with compatible displayselectric bicycle 250W 350W 500W 750W controller

electric bicycle 250W 350W 500W 750W 1000W controller

.KT controllers for electric bicycle

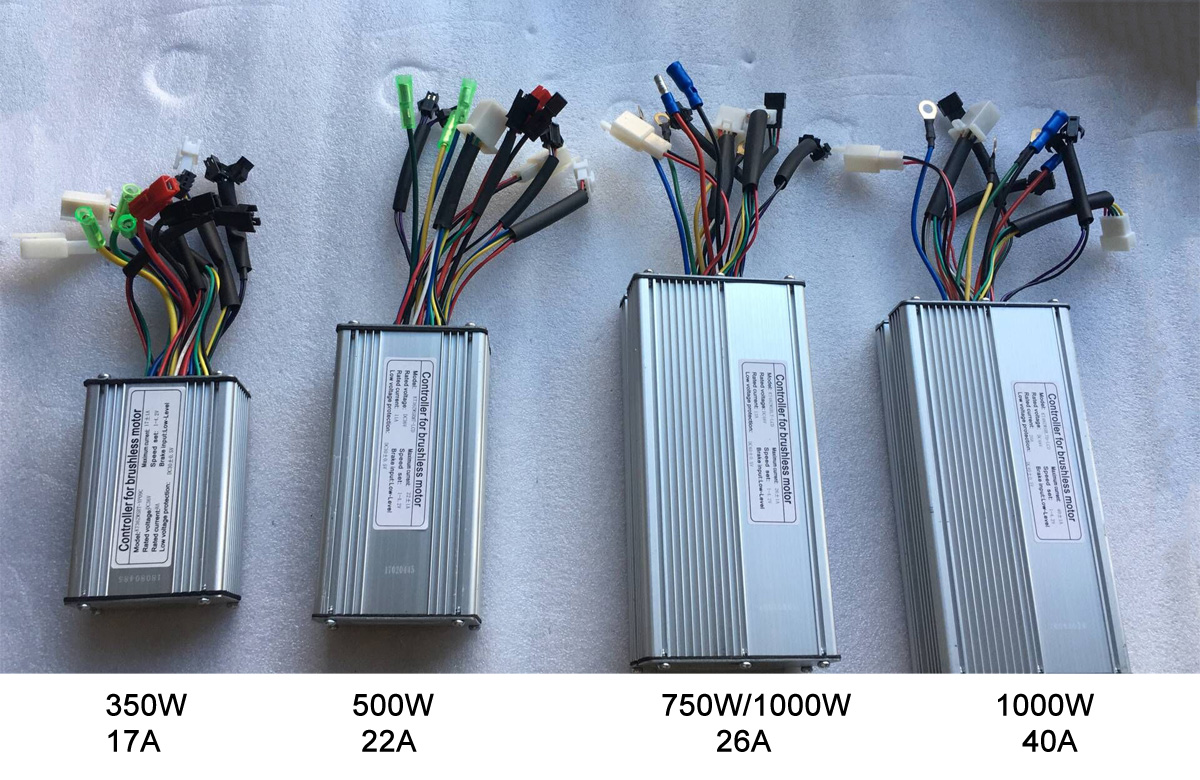

Controller 36V250W  36V 350W  36V 500W
Driving Modes Square wave Square wave Square wave
MOSFETs 6 6 9
Max current 15A 17A 22A
Cables 1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
Waterproof  IP64 IP64 IP64
Size (mm) 85*53*30 93*60*35 125*65*40

Controller 48V 250W  48V350W  48V 500W 48V750W/ 1000W
Driving Modes Square wave
Square wave Square wave Square wave
MOSFETs 6 6 9 12
Max current 15A 17A 22A 26A/40A
Cables 1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
1. Motor
2. Motor Hall
3. Power
4. Display
5. PAS
6. Throttle
7. Brake Levers
8. Front light
Waterproof  IP64 IP64 IP64 IP64
Size (mm) 85*53*30 93*60*35 125*65*40  131*66*40

Compatible Displays

KT LED display for electric bikeelectric bike LCD1 odometerelectric bicycle KT LCD3 display speedometerelectric bike LCD meter

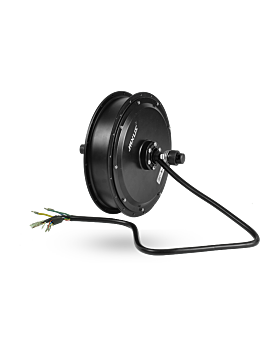

Compitable Motor

MXUS 350W motor

Fat bike 36V/ 48V 350W motor

MXUS 500W motor/ 750W brushless motor for electric fat bike

Fat bike 36V/48V 500W/750W motor

electric bike hub motor 250W

 36V/48V 250W/350W motor

MXUS motor 1000W

48V 1000W gearless motor

 MXUS geared hub motor 1500W for electric  bike

48V 1500W gearless motor

More Information
Item Type KT Series 6 MOSFETS Controller
Voltage 36V or 48V
Rated power 150- 500W
Rated current
Maximum current
Low voltage protection
KT-controller N/A
