Nowadays there are different kinds of hub motor conversion kits on the market for people to choose to convert their bike to an e-bike. Compared to buying one new e-bike, the kits can save a lot of money.



How to choose a right hub motor conversion kit for your bike?

1. The very traditional kit has a separate motor, battery, controller, e-brakes, display, PAS.  For these kits, you usually spend at least one hour to install it. Also, there are many different wires you may not know very well that can be very confused sometimes.



2. Considering a fast the installation, the all-in-one e-bike conversion kit comes out. This kit can help people install it very quickly, like 60 seconds and do not have too many wires, easy to install. But the problems are



A. The battery, controller, and motor gather all in one, will have a heat dissipation problem.

An electric bike biker knows that after riding the e-bike with the motor for a while, the motor and battery sometimes can be hot.

B. As all the parts in the motor that makes it very big and heavy and also have an unbalanced center of gravity in the front wheel ( normally these type of kits are all front wheels)

C.  The battery capacity is too small due to limited space, which not satisfy people who want a long range.





Is there a hub motor conversion kit that could be installed easily and fast, without worry about the heat and battery capacity?

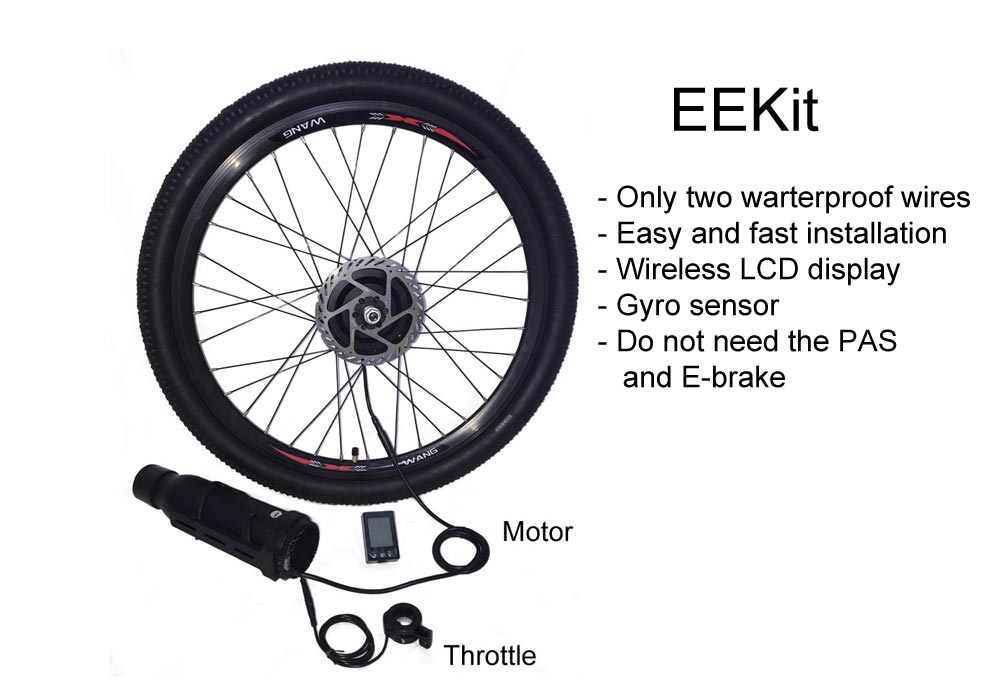

ELECYCLES promote the EEKit conversion kit system which is a half wireless kit system.

- Only two waterproof cables to be connected (motor to the controller, throttle to the controller)

- The normal size of the motor in the front wheel to keep a lightweight

- 36V 5.2Ah/ 7Ah LG lithium battery

- Wireless LCD display

- Do not need the PAS and electric brakes



With this system, people accuracy can convert their bike to e-bike in one minute. First change the front wheel, second install the battery and LCD display, third connect the two wires. Then that is all. People can also download the app on the phone to change the limit speed of the motor, the max speed is 32km/h under the throttle but for some countries, as the limit speed according to the law is 25km/h.





Comparisons

1. EEKit wireless electric bike conversion kit

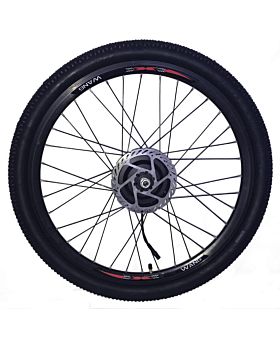

 EEKit wireless ebike kit system



Power: 250 watts

Motor torque: 30Nm

Battery: 36V 5.2Ah/ 7Ah LG lithium battery. Charge time 3 hours. 1,000 cycle battery life.

Max speed: 32km/h ( 19.9mph, could be limited by setting)

Range: 50km/ 65km ( 31 mi/ 40mi ).

Weight: 13.7 pounds.

Smartphone App: Yes. iPhone and Android compatible.

Wheel size options: 16”, 20”, 24”, 26”, 27.5”, 700C, 29”

Connected cables: 2



Pros

(1) Street legal, the max speed is 32km/h and it could be limited to 25km/h or smaller by phone APP setting.

(2) Installation is easy and fast. You need to connect two cables only- one from the controller to the motor, the other from the controller to throttle ( it would also work without throttle, that is drive by assist power ), which could convert a bike to an e-bike in a minute. Wireless LCD display installed fast without a cable connection.

(3) There are a wireless module and gyro sensor and in the controller,  could sense the speed and brake to offer different levels of assist power and cut off the power when brake, do not need the PAS and electric brakes.

(4) Different Rim and tires for choice, 16” 20”, 24”, 26”, 700C, 27.5”, 29”, with different tire width such as 1.75”, 1.95” etc.

(5) 36V bottle battery, easily took off to charge at home.

(6) Waterproof cables, battery and controller and motor well seal, the grade is IP65.

(7) The system is smooth, stable and intelligent.

(8) 5V USB output for charging of phone in urgent.



Cons

(1) The phone APP and the LCD display could not work at the same time.

(2) The motor cable may be longer on some bikes.

(3) The price is a little higher than a general hub motor conversion kits.





 2. Traditional Kit- discrete cables

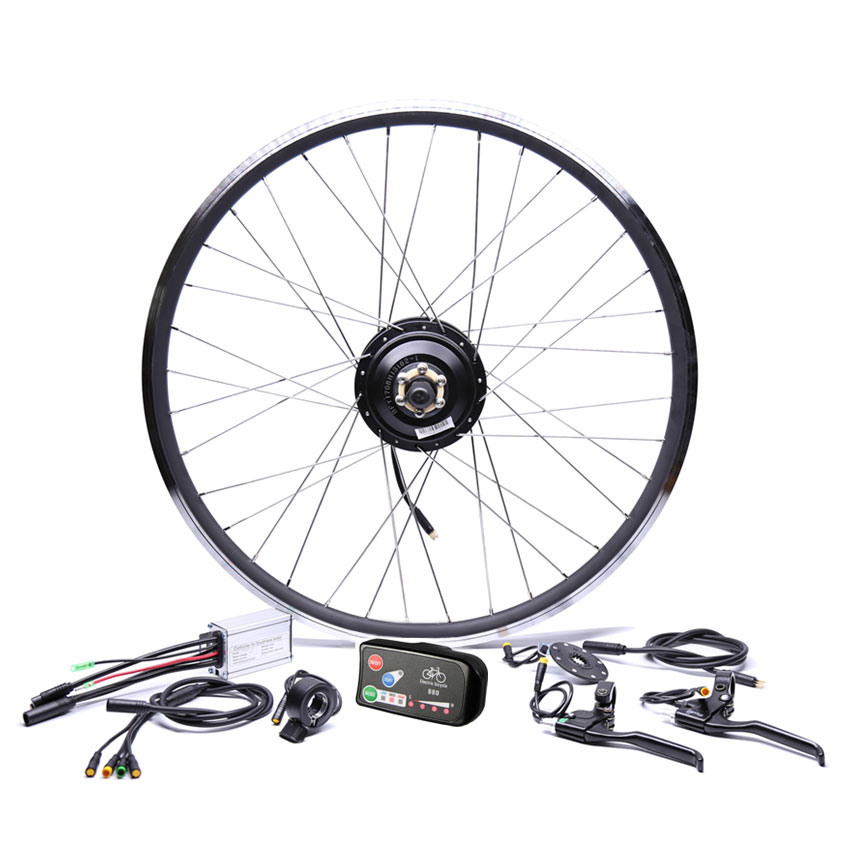

 Front electric bike kits



Pros

(1)Street legal, the max speed is 28km/h and it could be limited to 25km/h or smaller by the LCD display. ( it could not be set if with a LED display or without display).

(2)The price is lower compared to other hub motor kits.

(3)Different Rim and tires for choice, 16", 20", 24", 26", 700C, 27.5", 29", with different tire width such as 1.75", 1.95", 2.125" etc.

(4)Could choose different types different capacity battery just with compatible voltage and current.





Cons

(1)The installation is complex, needs a long time to confirm all the cables and connect all the parts- motor, battery, controller, display, PAS, E-brakes. For a new starter, it is hard to complete the conversion.

(2)Before installation, you need a controller cables diagram, then check whether all the parts cables could match the controller cable. Note that anyone cable connected wrong will lead to a failure.

(3)The cable's connector which the waterproof function is weak.

(4)The power assistance depends on the assist level on LED/ LCD and the rotate PAS, sometimes it is not sensitive nor stable.

(5)When choosing a battery, need to confirm the battery voltage and current are compatible with the kits, and the battery cable connector matches the controller.



3.Traditional Kit- waterproof cables

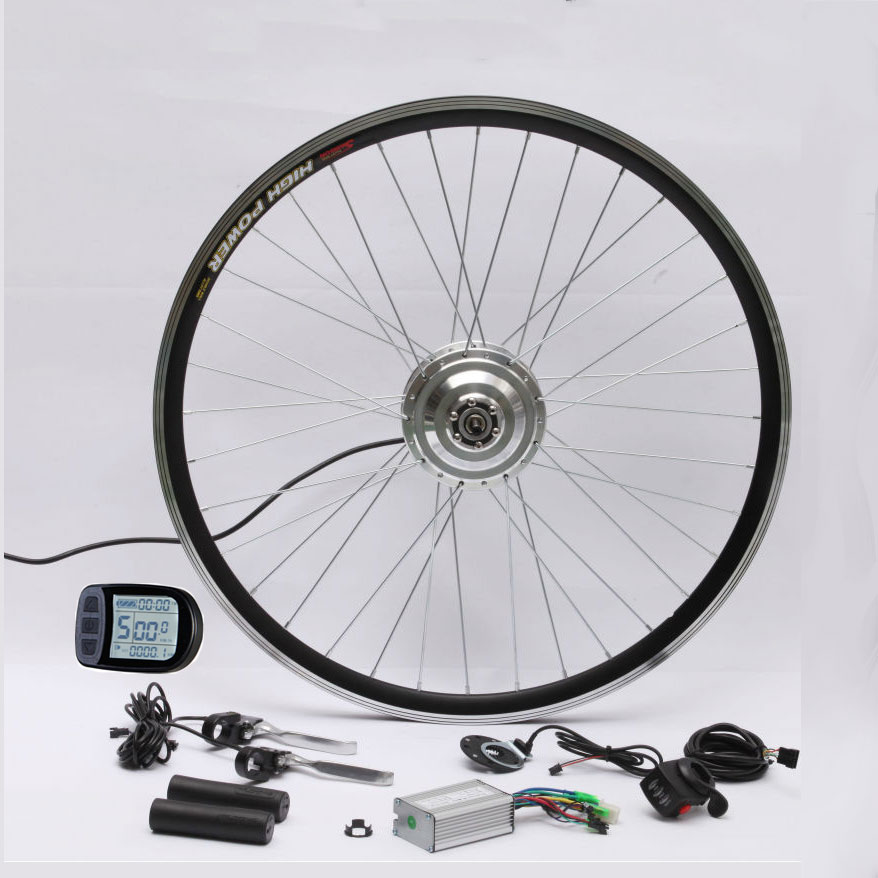

 Waterproof bike cycle conversion kit



Pros

(1) Street legal, the max speed is 28km/h and it could be limited to 25km/h or smaller by the LCD display. ( it could not be set if with the LED display or without display).

(2) Different Rim and tires for choice, 16” 20”, 24”, 26”, 700C, 27.5”, 29”, with different tire width such as 1.75”, 1.95”, 2.125" etc.

(3) Could choose different types different capacity battery just with compatible voltage and current.

(4) Waterproof connector.





Cons

(1) The installation needs time to confirm all the cables and connect all the parts- motor, battery, controller, display, PAS, E-brakes.

(2) Before installation, you need a controller cables diagram.

(3) The power assistance depends on the assist level on LED/ LCD and the rotate PAS, sometimes it is not sensitive nor stable.

(4) When choosing a battery, need to confirm the battery voltage and current are compatible with the kits, and the battery cable connector matches the controller.



 4. All-in-one E-bike kit - Imortor 2.0

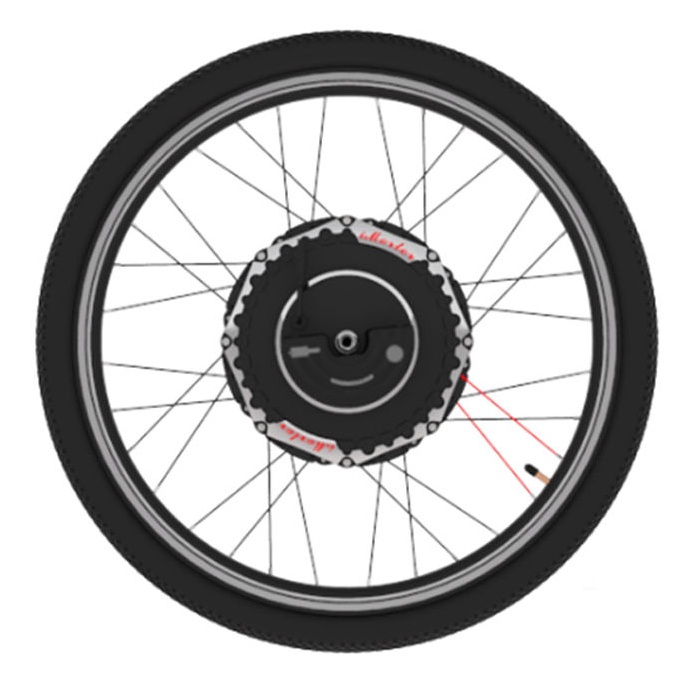

 imortor2 all-in-one electric bike conversion kit

Power: 350 watts

Motor torque: 7Nm

Battery: 24V 6.4Ah LG lithium battery. Charge time 3 hours. 1,000 cycle battery life.

Max speed: 35km/h ( 21.7mph, could be limited by setting)

Range: 50km( 31 miles).

Weight: 18.5 pounds.

Smartphone App: Yes. iPhone and Android compatible.

Wheel size options: 20”, 24”, 26”, 27.5”, 700C

Connected cables: 6

Pros

(1)All-in-one- motor, controller, battery are gathered in one wheel, it is easy and fast to install.

(2)Street legal, the max speed is 35km/h and it could be limited to 25km/h or smaller by phone APP setting.

(4)Different Rim and tires for choice, 16” 20”, 24”, 26”, 700C, 27.5”, 29”, with different tire width such as 1.75”, 1.95”, 2.125" etc.

(5)The battery is easily taken off to charge at home.

(6)Waterproof cables.

(7)5V USB output for charging of phone in urgent.

(8)Phone holder.



Cons

(1)The motor, controller, battery are all gathered in the front wheel, which makes the front wheel heavier that steering is not sensitive, and there are traction problems with low speed or climbing.

(2)When running, the motor and battery temperature would rise, as the motor, controller, battery are all gathered together that the heat would affect all the systems efficiency and lifetime.

(3)It needs more time to complete the installation as their different parts should be connected- motor, throttle, PAS, brake sensor, Phone holder.

(4)The phone APP and LCD display are alternatives. When you choose an LCD display, you could not use the phone APP.
